China's earliest production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers
Advantages of corrugated aluminum sheet: First of all, because the density of aluminum is only 2.71 and the density of iron is 7.8, the weight of each square aluminum tile is less than 1/3 of that of stainless steel, which is very good to reduce the cost of the enterprise and can reduce the pressure of the bracket.
Second: aluminum has a good anti-rust effect, in the outside environment, rain, sun exposure, snow for aluminum almost no damage, not line iron, see the rain after the rapid rust, From the above two points, it can be seen that aluminum tiles can completely replace stainless steel materials to a large extent, and at a lower cost, it is the preferred material for the construction industry.
Our company mainly corrugated aluminum tile type and specifications, and also has spraying technology, can be aluminum tile surface fluorocarbon, polyester spraying, roll coating processing.
arc honeycomb panelFeatures: sound insulation, heat insulation, fire prevention, shockproof function outstanding.
Specification range of corrugated aluminum plate:(0.5~5.0)*(2000~6000)
Corrugated aluminum alloy grades: 3003, 3004, 3105, etc
corrugated aluminum plateModel: 750 type, 840 type, 850 type, 900 type.

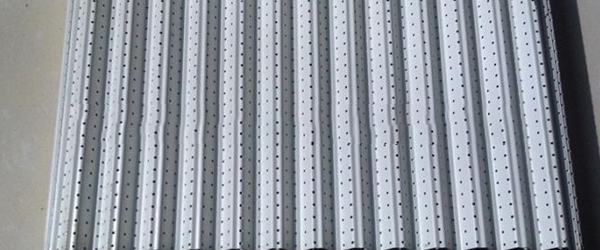

3003, 3004, 3105 corrugated board, corrugated aluminum plate (corrugated aluminum plate) product overview
stainless steel honeycomb plateEasy and fast installation.
Corrugated board, corrugated aluminum plate, corrugated aluminum plate is suitable for industrial and civil buildings, warehouses, special buildings, large-span steel structure housing roof, wall and interior and exterior wall decoration. Corrugated aluminum plate (corrugated aluminum plate) has the characteristics of light weight, high strength, rich color, convenient construction, earthquake resistance, fire prevention, rain prevention, long life, maintenance free, etc., and has been widely used. Now there have been many plastic extrusion corrugated board, corrugated aluminum, corrugated aluminum, there are transparent, there are opaque and colored, as well as multi-layer composite hollow. Because of its good plasticity, it can better adapt to the requirements of various architectural shapes, but compared with the service life, aesthetic degree and durability and other performance color steel corrugated board is better.
Main tile type: YX35-125-750(V125 type) aluminum tile; YX25-205-820 type aluminum tile; YX23-210-840 type aluminum tile; YX14-65-850 (arc) aluminum tile; YX12-100-880 type aluminum tile; YX15-225-900 aluminum tile.
Aluminum tile, corrugated aluminum tile is widely used in the construction industry, can be fluorocarbon spraying, the main color according to the Lauer color card customized by the customer, commonly used colors are red, blue, white and so on.
Mirror honeycomb panelThe appearance is straight, the color is diverse, the color is uniform and stable.

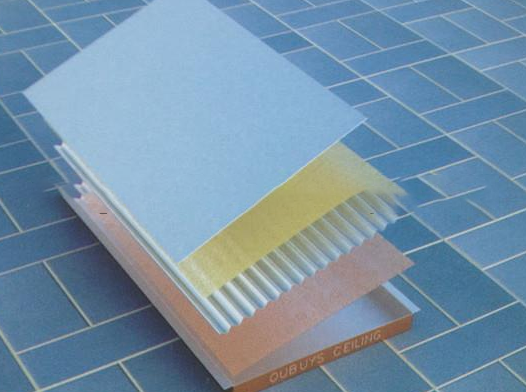

Corrugated aluminum plate is a new type of composite aluminum plate curtain wall material, which is formed by bonding the 0.6-0.8mm panel, 0.4mm bottom plate, and 0.2mm corrugated core plate in the middle. The surface of the corrugated core material is coated with thermosetting epoxy resin adhesive, and the aluminum plate product is compounded by heating and pressurizing. The compounding method is similar to that of corrugated box board.
