aluminum honeycomb panel Honeycomb board

China's earliest production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

prev next

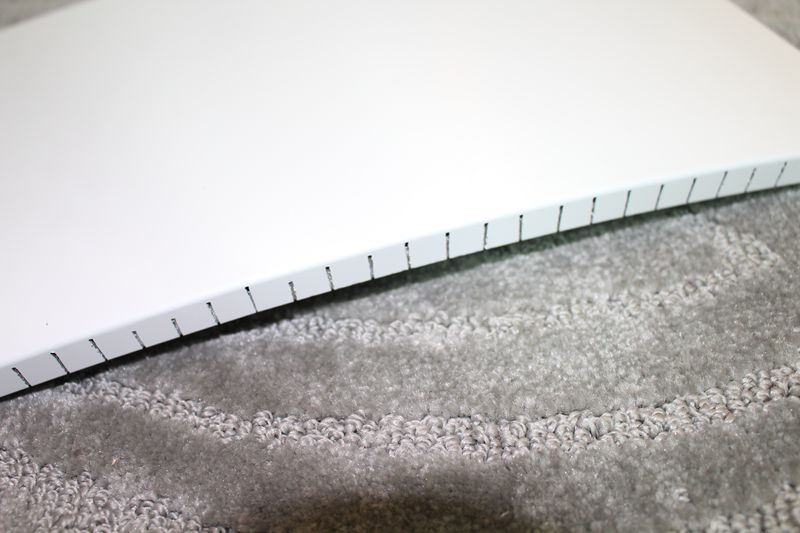

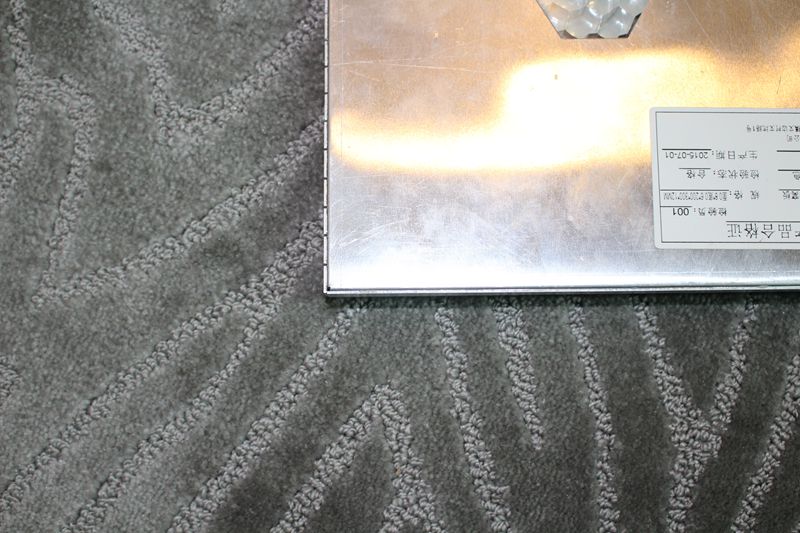

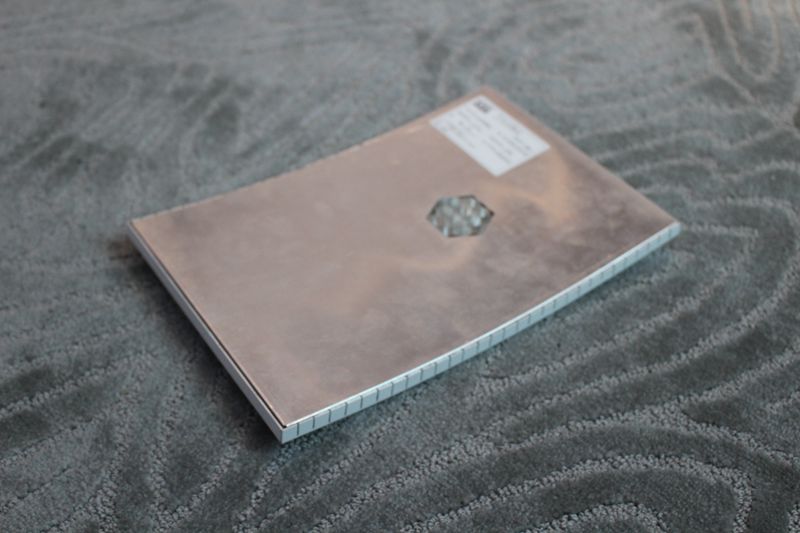

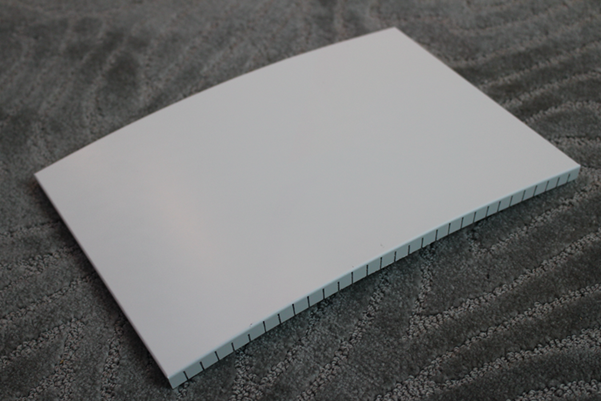

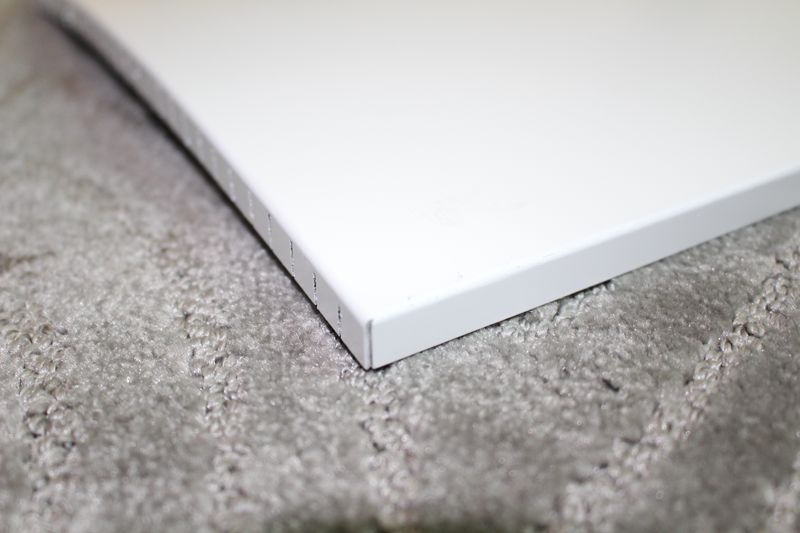

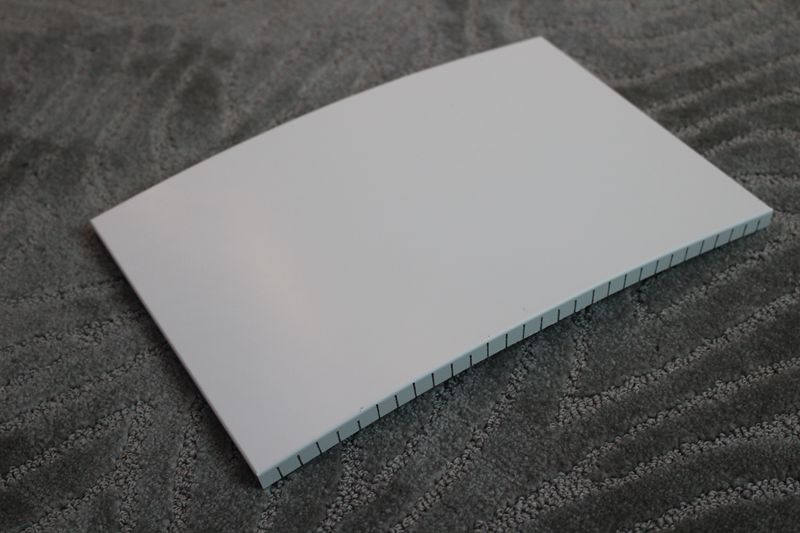

arc honeycomb panel

Aluminum honeycomb panel is mainly used in the exterior wall decoration of buildings. It is a luxurious and rich decoration material. Its panel mainly uses high-quality 3003H24 alloy aluminum plate 5052AH14 high manganese alloy aluminum plate as the base material. The panel thickness is 0.8~1.5mm fluorocarbon roll-coated plate, the bottom plate thickness is 0.6~1.0mm, and the total thickness is 10mm ~ 25mm. The core material adopts hexagonal 3003 type aluminum honeycomb core, the thickness of aluminum foil is 0.04~0.06mm, the side length is 5~6mm, the polymer adhesive film and modified epoxy are used, the dust-free operation is fully enclosed, and the full-automatic Honeycomb board compound production equipment is used to compound through pressure and high temperature, which overcomes the brittleness problem of the bonding layer of Honeycomb board in the past. The aluminum honeycomb panel will not change under the condition of humidity and high temperature. It is a kind of green enviro

National Advisory Hotline

13074271912

Customize immediately Online consultation


arc honeycomb panel

Functional features:


Free adjustment level is clear

Weight ratio, high strength, stiffness, structural stability, good resistance to wind pressure.

Sound insulation, heat insulation, fire prevention and shockproof functions are outstanding.

The appearance is straight, the color is diverse, the color is uniform and stable.

Easy and fast installation.


Scope of application:


All kinds of large public building passageways, airports, exhibition halls, shopping centers, stations, tunnel corridors, etc.

产品细节


















undefined

undefined



Enterprise Introduce

Enterprise Introduction

Guangzhou Kaimai Metal Building Materials Co., Ltd. is headquartered in Panyu District, Guangzhou City, Guangdong Province. It is one of the earliest enterprises in mainland China to produce and process aluminum veneer ceiling and aluminum veneer curtain wall. Its predecessor is a well-known professional OBM processing enterprise in Guangdong. The company covers an area of more than 30000 square meters and has a total investment of 30 million yuan. It mainly has curtain wall plate processing workshop, aluminum ceiling processing workshop, honeycomb plate composite workshop, special-shaped plate processing workshop and sound absorbing panel processing workshop, PPG spraying workshop, large warehouse and comprehensive office building, etc.

The company has advanced and automated production equipment: large-scale CNC machining center, CNC multi-station punch, 6m CNC shearing machine, bending machine, engraving machine, 6m CNC bending machine and other professional production equipment, as well as the United States PPG, AkzoNobel and DURACOAT approved and designed and manufactured by the United States company up to 580 meters of computer numerical control spraying line. The company has more than three hundred employees, 75% of whom have a college degree or above. The engineering and technical team is composed of experienced professionals, who have participated in the tracking design and installation of large-scale engineering projects at home and abroad. In addition, through technical cooperation with Deckel, Maho of Germany, KME Company of Florence and Gildmeiste R, and technical cooperation with Institute of Building Acousto and Optics of Chang'an University and Institute of Acoustics of Tongji University, R & D capabilit

At present, KLCC Aluminum's Products already have hundreds of product specifications such as aluminum veneer ceiling, curtain wall, honeycomb panel, sound-absorbing panel, hanging curtain hanging sheet, aluminum square pass, aluminum magnesium manganese roof, etc. With strong research and development capabilities and dedication to excellent quality, the company further strengthens the market influence of KLCC Aluminum, and better provides customers with fast, high-quality Products and good services.

Heaven is healthy, the gentleman is constantly striving for self-improvement, the terrain is Kun, and the gentleman carries things with virtue. KLCC Aluminum is the essence of being a man with integrity, the attitude of doing things in a down-to-earth manner, the pursuit of high goals, strict and meticulous management, and sophisticated technical equipment. Serve customers as always, and work hard to make KLCC Aluminum a world famous brand!
