China's earliest production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

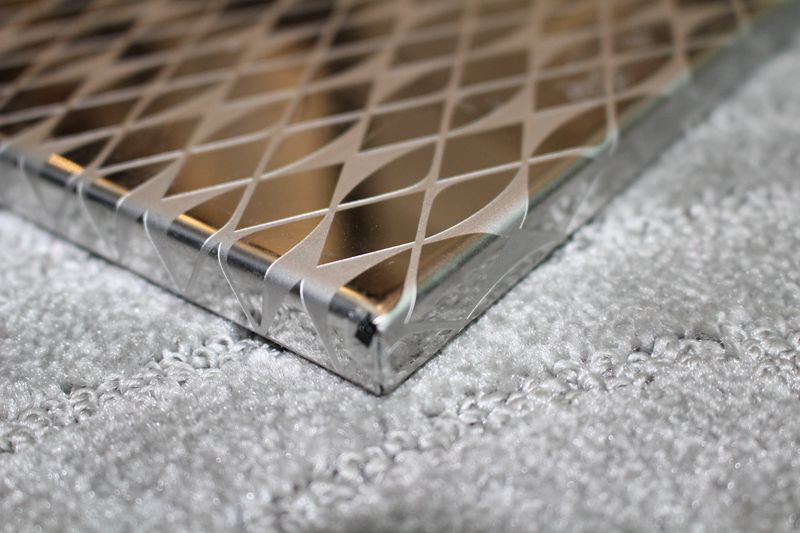

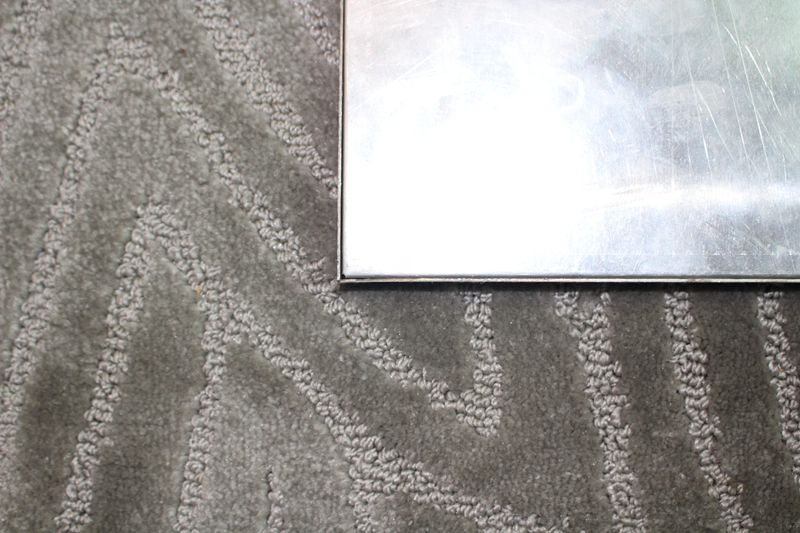

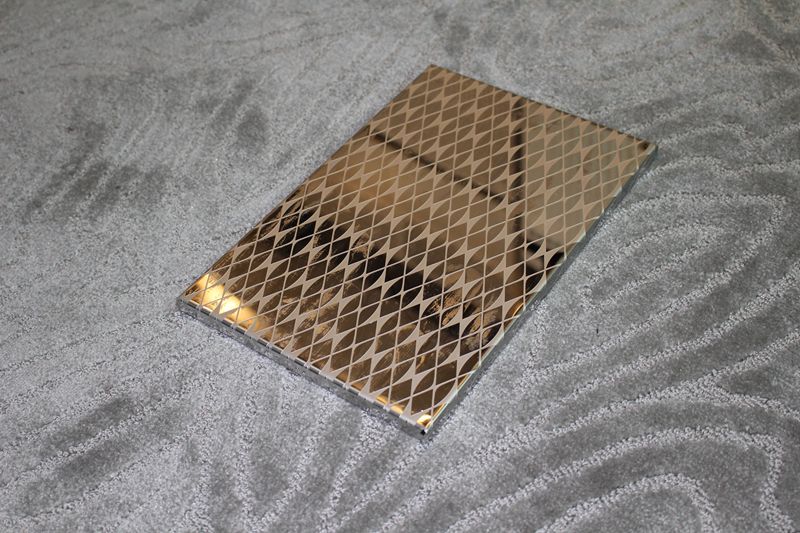

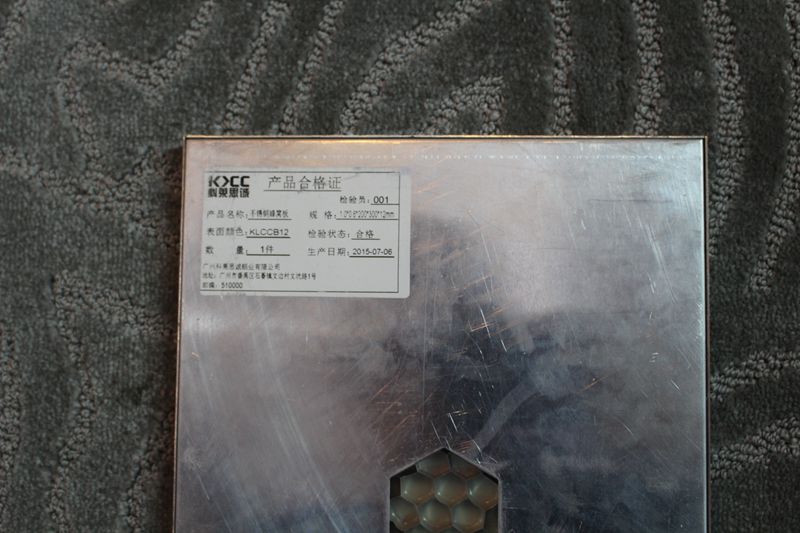

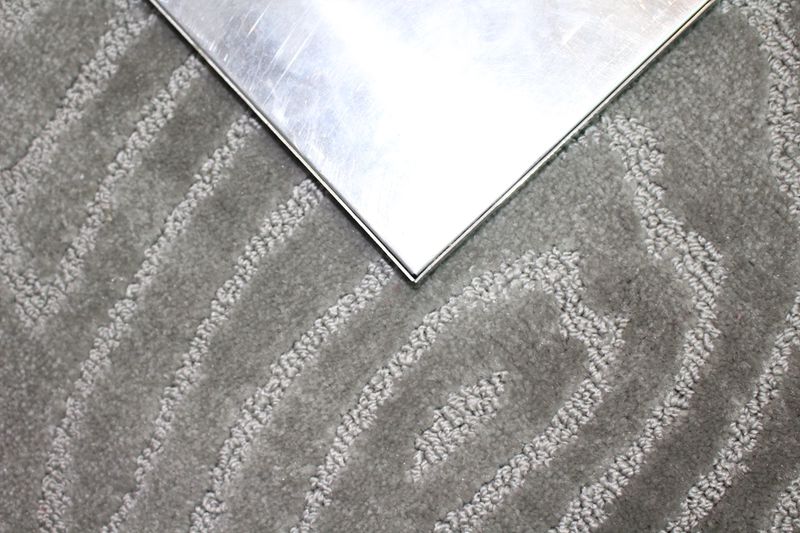

Aluminum honeycomb panel is mainly used in the exterior wall decoration of buildings. It is a luxurious and rich decoration material. Its panel mainly uses high-quality 3003H24 alloy aluminum plate 5052AH14 high manganese alloy aluminum plate as the base material. The panel thickness is 0.8~1.5mm fluorocarbon roll-coated plate, the bottom plate thickness is 0.6~1.0mm, and the total thickness is 10mm ~ 25mm. The core material adopts hexagonal 3003 type aluminum honeycomb core, the thickness of aluminum foil is 0.04~0.06mm, the side length is 5~6mm, the polymer adhesive film and modified epoxy are used, the dust-free operation is fully enclosed, and the full-automatic Honeycomb board compound production equipment is used to compound through pressure and high temperature, which overcomes the brittleness problem of the bonding layer of Honeycomb board in the past. The aluminum honeycomb panel will not change under the condition of humidity and high temperature. It is a kind of green environmental protection decoration material with high quality, light weight and high strength.
Functional features:
Free adjustment level is clear
Weight ratio, high strength, stiffness, structural stability, good resistance to wind pressure.
Sound insulation, heat insulation, fire prevention and shockproof functions are outstanding.
The appearance is straight, the color is diverse, the color is uniform and stable.
Easy and fast installation.
Scope of application:
All kinds of large public building channels, airports, exhibition halls, shopping centers, hotels, entertainment clubs, etc.
