Construction Preparation for Fabrication of Outdoor Honeycomb Aluminum Curtain Wall

Article Source: Guangzhou Kaimai Metal Building Materials Co., Ltd. 人气:-Published: 2016-11-05 15:23:00

1. positioning and setting out

  1.Construction Preparation for Fabrication of Outdoor Honeycomb Aluminum Curtain WallIn accordance with the uniformly measured axis control line and building elevation control line, the level gauge is used to determine the elevation position of the aluminum plate, and the horizontal line is uniformly controlled.

2. The vertical axis control is based on the position of the 44-axis axis, and the vertical grid line is determined by the standard span, that is, 9 meters or 12 meters, in the order of south, north, east and west.

3.Stone Honeycomb PanelDeformation joints and corners to adjust the construction error, to absorb the error here, and non-standard plate processing.

4. This is also to control the elevation of the curved aluminum plate in the same arc and curvature.

5. Construction preparation for the production of outdoor honeycomb aluminum curtain wall of the terminal: on the one hand, the top of the wall is about 11.20 meters high, the upper cornice is about 9.00 meters high, the window is about 6.65 meters high, and the lower cornice is about 4.10 meters high. The elevation and entry and exit dimensions should be controlled.

6. On the other hand, two arc-shaped rulers with a radius of 6 meters and 6.88 meters and 9.43 meters respectively are used as testing tools,arc honeycomb panelYou want to control the curvature to be consistent.

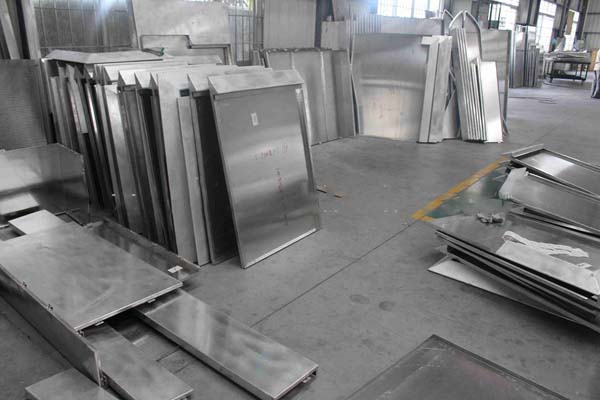

Honeycomb aluminum plate

Preparation of 2. materials

A total of 85000 meters of various aluminum profiles of metal plates, 40000 square meters of aluminum honeycomb plates, 400000 self-tapping screws, 60000 meters of sealing rubber strips, 300000 aluminum included angles, 300000 structural silicone 8000 tubes, rivets, 60 tons of arc-shaped galvanized angle steel (75mm × 75mm × 5mm), 50 tons of C- shaped steel, 100000 sets of ordinary screws, 60000 sets of expansion bolts, 40000 embedded connectors and 40000 pieces of rock wool.

Preparation of 3. construction personnel

There are three companies with a total of 120, 100 and 100 construction personnel on site. Production factory processing personnel one hundred people.

Preparation of 4. construction equipment

Twenty electric cutting machines, three plasma cutting machines, four aluminum frame molds, two structural glue injection machines, and aluminum One honeycomb plate cutting machine, nine aluminum opening machines, four polishing machines, 100 hand-held electric rivet guns, two aluminum honeycomb plate opening machines, 40 manual sealant injection guns, 4500 tons of scaffold steel pipes, three 400A electric welding machines, ten 100A electric welding machines, three aluminum plate bending machines, three BJ-6 theodolites and three leveling instruments.

5. deepening design

Terminal OutdoorHoneycomb aluminum plateConstruction preparation for curtain wall production: according to the architectural drawings and actual setting-out data, draw out the wall layout diagram and special-shaped plate installation node diagram of each part, and submit it to the design for approval before processing, production and construction.
