Specification of honeycomb aluminum plate

Article Source: Guangzhou Kaimai Metal Building Materials Co., Ltd. 人气:-Published: 2016-12-07 17:16:00

  Specification of honeycomb aluminum plate: Honeycomb aluminum plate is a composite material with large surface formed by hot pressing and compounding high-grade aluminum alloy panel, back plate and aluminum honeycomb core material. The product specifications are various, and the surface can be embossed, mirror, embossed, wire drawing, electroplating, anodizing, matte, bright light and metallic color, etc., which can meet the application requirements of various places.

Specification of honeycomb aluminum plate

  Honeycomb aluminum plateThe heat insulation, sound insulation. The material of the honeycomb panel itself does not have the performance of heat insulation and sound insulation. The specifications of the honeycomb aluminum plate, such as aluminum, are good conductors of heat and sound. However, the unique structure of the honeycomb panel makes the honeycomb panel have good heat insulation and sound insulation performance.

  Stone Honeycomb PanelScope of application: all kinds of large public building channels, airports, exhibition halls, shopping centers, stations, tunnel corridors, etc.

The nest core is a porous structure, and the pores occupy most of the space. Taking the honeycomb aluminum plate made of aluminum foil with a thickness of 0.1mm and a specification of 51.96x 48.00x 12.20mm as an example, the solid part only accounts for 4% of the total volume.

After the honeycomb core and the panel are compounded into a honeycomb panel, the cell becomes a six-sided columnar closed space, and the air layer between the upper and lower panels is also divided into many closed cells, which prevents air flow. Heat is difficult to propagate in the form of convection and radiation in this structure, and the propagation of sound waves is also greatly restricted, so the honeycomb panel has better heat insulation and sound insulation performance.

Specification of honeycomb aluminum plate

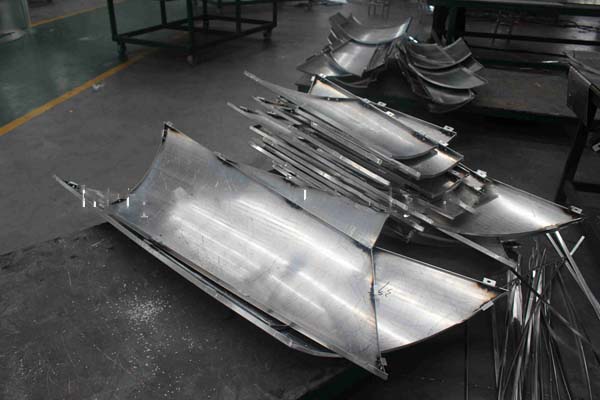

  arc honeycomb panelFeatures: sound insulation, heat insulation, fire prevention, shockproof function outstanding.

The honeycomb aluminum plate produced by polyurethane and epoxy resin room temperature curing adhesive has low bonding strength. The 180 peel strength measured for honeycomb aluminum plate with honeycomb core side length of 4mm, panel thickness of 1mm and total thickness of 10mm is about 4N/mm.

The adhesion and weather resistance of the honeycomb aluminum plate are poor, and the adhesive performance of the honeycomb aluminum plate is greatly reduced after 1 year of use. The honeycomb aluminum plate produced by this process is not suitable for outdoor use, but can be used for indoor decorative partitions.

The grid and fixation of the honeycomb aluminum plate are determined by calculation, which ensures the wind pressure deformation performance of the honeycomb aluminum plate and improves the safety of the curtain wall.

  Mirror honeycomb panelThe appearance is straight, the color is diverse, the color is uniform and stable.

Specification of honeycomb aluminum plate

The back of the honeycomb aluminum plate is equipped with thermal insulation material to make its thermal insulation performance fully meet the requirements.
