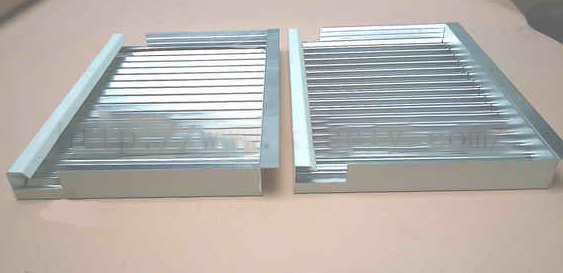

Ceiling corrugated aluminum plateInstallation of hanger rod and pendant: determine the position of hanger bar according to the requirements of construction drawings. The hanger rod is made of Φ8 full-wire galvanized hanger rod with diameter. The maximum distance from the hanger bar lifting point to the keel end shall not be more than 300mm, and the hanger rod spacing shall not be more than 1000mm.

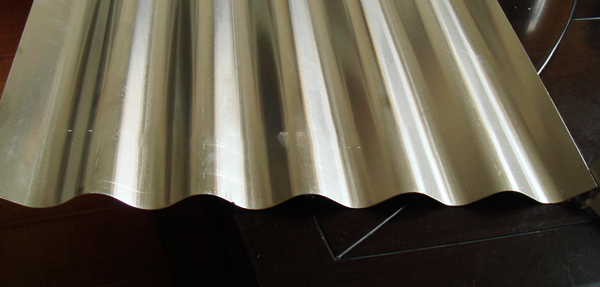

aluminum corrugated boardIs the use of aluminum after rolling cold bending into a variety of waveform plate, it is suitable for industrial and civil buildings, warehouses and interior and exterior wall decoration, with light weight, high strength, fire prevention, long life and other characteristics, has been widely applied.
吊杆与楼板连接处使用Φ10内膨胀栓固定牢固。安装吊杆若遇到空调通风管道大于1000mm时,应在风管两侧固定Φ8全丝镀锌吊杆,用40*40*4角钢水平与两侧吊杆焊接,然后再按规划好的吊点间距施工。
arc honeycomb panelFeatures: sound insulation, heat insulation, fire prevention, shockproof function outstanding.
Process flow: base cleaning → spring line → installation of hanger rod and pendant → installation of main keel → installation of secondary keel → weak current and comprehensive wiring laying → concealed inspection → installation of aluminum plate → finished product protection → sub-item acceptance
The suspended ceiling corrugated aluminum plate shall be welded or bolted to the connecting piece according to the position of the elastic line. During installation, the elevation and center line position shall be checked at any time. For the skeleton column of the aluminum plate curtain wall of the exterior wall with large area and high floor height, measuring instruments and line drop must be used to measure and correct its position to ensure the vertical rod of the skeleton is straight and flat. .
stainless steel honeycomb plateEasy and fast installation.
Ceiling corrugated aluminum is a kind of decorative curtain type ceiling, bright and elegant lines, the overall transparent, peaceful, rich color. Choose the appropriate height, with the appropriate visual angle, can produce the curtain effect, making the design change, the effect is beautiful.
Ceiling corrugated aluminum plate has clear layers, beautiful appearance, simple lines, durable, good ventilation effect, flexible assembly and disassembly, and can adjust the visual height according to user requirements, which is conducive to empty
