Aluminum SquareProduct

China's earliest Production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

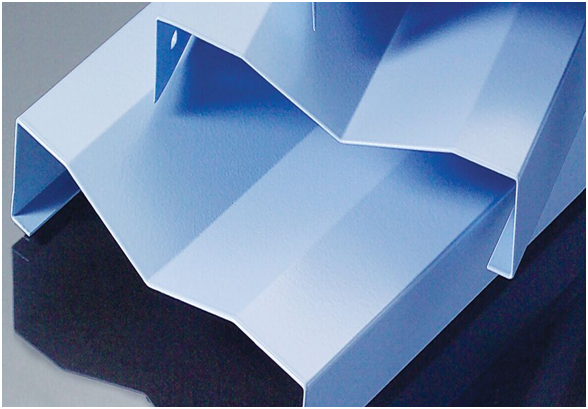

               异型垂帘

Functional features:


The hook-up bar buckle uses the keel to cleverly connect the board into a whole,

The plate surface and the plate surface are interlocked and seamlessly formed to form a perfect overall visual effect,

Because of its unique design, can be evenly stressed, so only need light plate can be installed in the wind speed channel, corridor, solid and durable


Scope of application:


All kinds of large public building passageways, airports, exhibition halls, shopping centers, stations, tunnel corridors, etc.

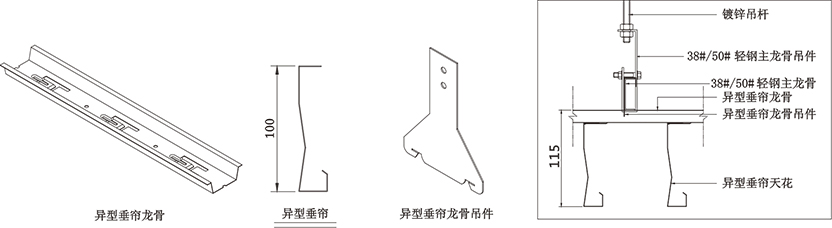

Installation Diagram 1

Special-shaped hanging curtain ceiling (with special-shaped hanging curtain keel) installation instructions:

  • 1. Measure the elevation after installation according to the design requirements;
    2. Determine the construction direction, punch hoisting holes on the ceiling at a distance of ≤ 1200mm, and fix the galvanized hanger rod with expansion bolts;
    3. Fix the light steel keel and hanging parts, adjust the light steel keel to the level, and at the same time adjust the elevation to keep the same, the spacing of the light steel keel is ≤ 1200mm;
    4. Fix the special-shaped drape keel, fix the auxiliary keel and the light steel keel with the special-shaped drape keel hanging piece, the auxiliary keel is parallel to each other and perpendicular to the light steel keel, and the distance between the auxiliary keel is ≤ 1200mm;
    5. Clip the special-shaped curtain into the keel of the special-shaped curtain and adjust it slightly;
    6. Note: The installation process should keep the hands clean, no sweat, oil and other undesirable phenomena.

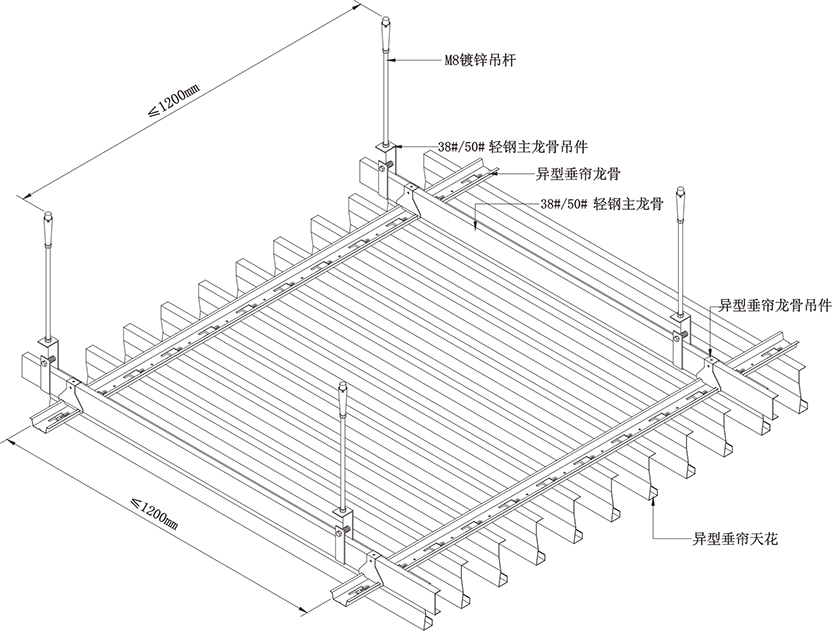

Installation Diagram 2




Enterprise Introduce

Enterprise Introduction

Guangzhou Kaimai Metal Building Materials Co., Ltd. is headquartered in Panyu District, Guangzhou City, Guangdong Province. It is one of the earliest enterprises in mainland China to produce and process aluminum veneer ceiling and aluminum veneer curtain wall. Its predecessor is a well-known professional OBM processing enterprise in Guangdong. The company covers an area of more than 30000 square meters and has a total investment of 30 million yuan. It mainly has curtain wall plate processing workshop, aluminum ceiling processing workshop, honeycomb plate composite workshop, special-shaped plate processing workshop and sound absorbing panel processing workshop, PPG spraying workshop, large warehouse and comprehensive office building, etc.

The company has advanced and automated Production equipment: large-scale CNC machining center, CNC multi-station punch, 6m CNC shearing machine, bending machine, engraving machine, 6m CNC bending machine and other professional Production equipment, as well as the United States PPG, AkzoNobel and DURACOAT approved and designed and manufactured by the United States company up to 580 meters of computer numerical control spraying line. The company has more than three hundred employees, 75% of whom have a college degree or above. The engineering and technical team is composed of experienced professionals, who have participated in the tracking design and installation of large-scale engineering projects at home and abroad. In addition, through technical cooperation with Deckel, Maho of Germany, KME Company of Florence and Gildmeiste R, and technical cooperation with Institute of Building Acousto and Optics of Chang'an University and Institute of Acoustics of Tongji University, R & D capabilit

At present, KLCC Aluminum's Products already have hundreds of Product specifications such as aluminum veneer ceiling, curtain wall, honeycomb panel, sound-absorbing panel, hanging curtain hanging sheet, aluminum square pass, aluminum magnesium manganese roof, etc. With strong research and development capabilities and dedication to excellent quality, the company further strengthens the market influence of KLCC Aluminum, and better provides customers with fast, high-quality Products and good services.

Heaven is healthy, the gentleman is constantly striving for self-improvement, the terrain is Kun, and the gentleman carries things with virtue. KLCC Aluminum is the essence of being a man with integrity, the attitude of doing things in a down-to-earth manner, the pursuit of high goals, strict and meticulous management, and sophisticated technical equipment. Serve customers as always, and work hard to make KLCC Aluminum a world famous brand!
