Aluminum grille

China's earliest production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

Aluminum grille series


Functional features:


Three-dimensional space ventilation and exhaust

The grid is criss-crossed by the main and auxiliary grid bones to form a three-dimensional space, with distinct levels, good ventilation and exhaust effect, and the orderly combination and arrangement of multiple small grids leads to a strong sense of spatial three-dimensional,

Can be perfectly matched with all kinds of lighting. It is easy to arrange the air outlet, air conditioning, lighting, spray and other facilities, which can achieve the purpose of effective use of space.


Scope of application:


All kinds of large public building passageways, airports, exhibition halls, shopping centers, stations, tunnel corridors, etc.

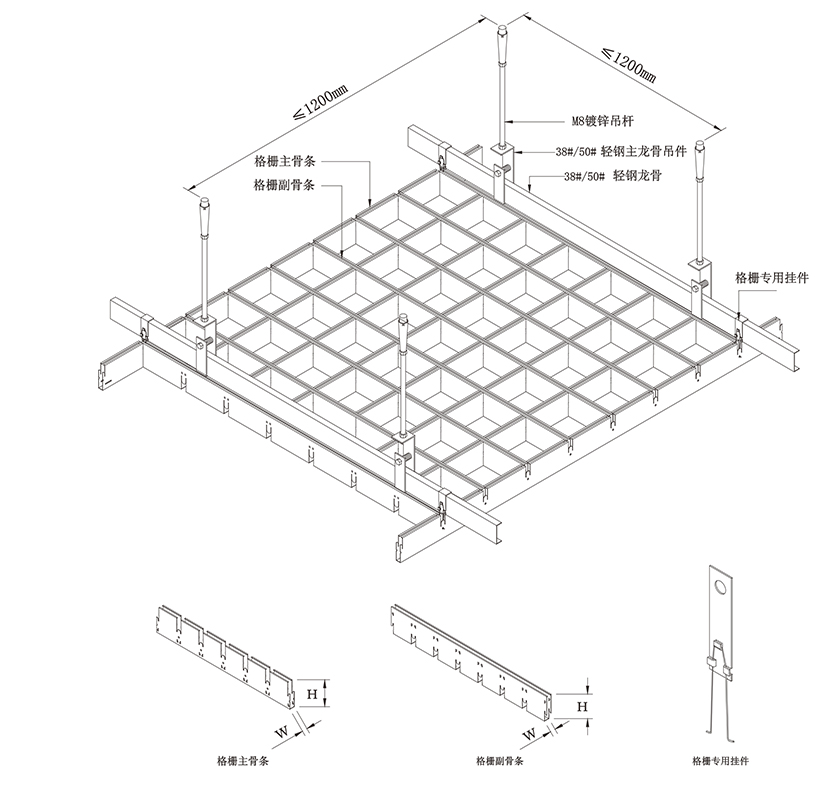

Installation Schematic

grille ceiling installation instructions:

1. The product is divided into main bone strip and accessory bone strip. When installing, the main bone strip is below, and the accessory bone strip is stuck into the main bone strip from top to bottom. The main bone strip and accessory bone strip are installed in parallel respectively;

2. During on-site installation, first hoist the light steel main keel according to the design elevation and adjust it to the horizontal level, keeping parallel to each other;

3. Combine the main bone strip and accessory bone strip of the grille into a unit (generally 2000*2000) according to the design length (generally 2000) on the workbench;

4. Hang the grille unit (usually 2000*2000) and the light steel main keel through the special grille pendant, and connect and lock the grille unit and the grille unit by hooking the auxiliary bone strips for mutual docking;

5. After installation, slight adjustment can be made;

6. The edge can be closed by the corner of the edge;

7. The installation process should keep hands clean, no sweat, oil and other undesirable phenomena.



Enterprise Introduce

Enterprise Introduction

Guangzhou Kaimai Metal Building Materials Co., Ltd. is headquartered in Panyu District, Guangzhou City, Guangdong Province. It is one of the earliest enterprises in mainland China to produce and process aluminum veneer ceiling and aluminum veneer curtain wall. Its predecessor is a well-known professional OBM processing enterprise in Guangdong. The company covers an area of more than 30000 square meters and has a total investment of 30 million yuan. It mainly has curtain wall plate processing workshop, aluminum ceiling processing workshop, honeycomb plate composite workshop, special-shaped plate processing workshop and sound absorbing panel processing workshop, PPG spraying workshop, large warehouse and comprehensive office building, etc.

The company has advanced and automated production equipment: large-scale CNC machining center, CNC multi-station punch, 6m CNC shearing machine, bending machine, engraving machine, 6m CNC bending machine and other professional production equipment, as well as the United States PPG, AkzoNobel and DURACOAT approved and designed and manufactured by the United States company up to 580 meters of computer numerical control spraying line. The company has more than three hundred employees, 75% of whom have a college degree or above. The engineering and technical team is composed of experienced professionals, who have participated in the tracking design and installation of large-scale engineering projects at home and abroad. In addition, through technical cooperation with Deckel, Maho of Germany, KME Company of Florence and Gildmeiste R, and technical cooperation with Institute of Building Acousto and Optics of Chang'an University and Institute of Acoustics of Tongji University, R & D capabilit

At present, KLCC Aluminum's Products already have hundreds of product specifications such as aluminum veneer ceiling, curtain wall, honeycomb panel, sound-absorbing panel, hanging curtain hanging sheet, aluminum square pass, aluminum magnesium manganese roof, etc. With strong research and development capabilities and dedication to excellent quality, the company further strengthens the market influence of KLCC Aluminum, and better provides customers with fast, high-quality Products and good services.

Heaven is healthy, the gentleman is constantly striving for self-improvement, the terrain is Kun, and the gentleman carries things with virtue. KLCC Aluminum is the essence of being a man with integrity, the attitude of doing things in a down-to-earth manner, the pursuit of high goals, strict and meticulous management, and sophisticated technical equipment. Serve customers as always, and work hard to make KLCC Aluminum a world famous brand!
