Aluminum honeycomb panels are mainly used in the exterior wall decoration of buildings

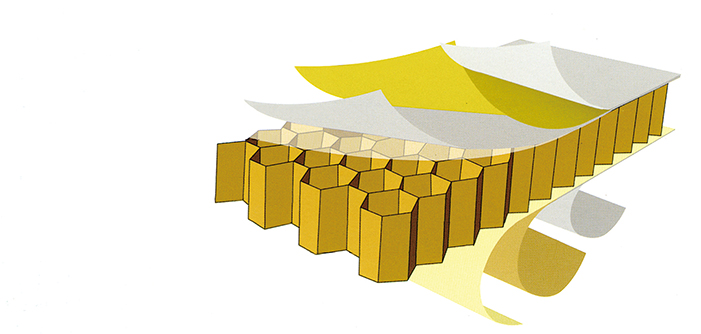

This is a luxurious and rich decorative material. Its panel mainly uses high-quality 3003H24 alloy aluminum plate 5052AH14 high manganese alloy aluminum plate as the base material. The thickness of the panel is 0.8~1.5mm fluorocarbon roll-coated plate, the thickness of the bottom plate is 0.6~1.0mm, and the total thickness is 10mm ~ 25mm. The core material adopts hexagonal 3003 type aluminum honeycomb core, the thickness of aluminum foil is 0.04~0.06mm, the side length is 5~6mm, the polymer adhesive film and modified epoxy are used, the dust-free operation is fully enclosed, and the full-automatic honeycomb board compound production equipment is used to compound through pressure and high temperature, which overcomes the brittleness problem of the bonding layer of honeycomb board in the past. The aluminum honeycomb panel will not change under the condition of humidity and high temperature. It is a kind of green environmental protection decoration material with high quality, light weight

The use of traditional hot press compound, each pressure honeycomb plate number is not much, the impact of work efficiency, the other in the removal of the honeycomb panel, the temperature of the honeycomb panel suddenly dropped, so that the honeycomb panel is easy to bend, deformation, affecting the quality of the honeycomb panel. The company adopts advanced full-automatic honeycomb panel composite production line, high production efficiency, temperature stability, product composite process from low temperature → medium temperature → high temperature → medium temperature → low temperature → shaping cooling → lower plate. The equipment can be continuous composite aluminum honeycomb panel, so that the aluminum honeycomb panel is more firmly bonded, more resistant to bending, more flat plate, more stable and reliable quality.

An aluminum honeycomb panel is a kind of ideal decoration material. Excellent 3003H24 alloy aluminum panel or 5052AH14 high manganese alloy aluminum panel is selected for surface panel rolling coated with fluorine carbon, with a thickness of 0.7-1.0mm. The thickness of bottom panel is 0.6-1.0mm and the total thickness is 10-25 mm. Hexagons 3003H24 aluminum honeycomb core is adopted for core material, with aluminum foil thickness, of 0.04-0.06mm and border length of 5-6mm.

Light specific gravity, high strength, high stiffness, stable structure, good wind pressure resistance

Light specific gravity, high intensity, high rigidity, steady structure and high wind-resistance performance.

Aluminum honeycomb panel with its light weight, high strength, stiffness and many other advantages, has been widely used in building exterior decoration. The honeycomb sandwich panel with the same stiffness weighs only 1/5 of the aluminum plate and 1/10 of the steel plate. The total thickness is 15mm, the panel is 1.0mm, and the bottom plate is 0.8mm aluminum honeycomb panel, which weighs only 6kg/m2. Interconnected honeycomb cores are like countless I-beams. The core layers are distributed and fixed in the whole plate surface, which is not easy to produce shear, making the plate more stable, more resistant to bending and compression. Its wind pressure resistance greatly exceeds that of aluminum-plastic plate and aluminum veneer, and has the characteristics of not easy deformation and good flatness. Even if the honeycomb plate is large in size, it can achieve extremely high flatness. The aluminum honeycomb panel achieves maximum strength and deflection with its minimum weight. And lies in the excellent rigid weight ratio, with the smallest material to obtain the maximum force, is the incomparable characteristics of other materials, is currently the construction industry preferred lightweight materials.

Aluminum honeycomb panels have been extensively applied to external wall decoration of high-rises. Honeycomb sandwich panels of the same rigidity have a weight that only 1/5 of aluminum panels and 1/10 iron panels. Aluminum honeycomb panels, whose total thickness being 15mm, panels 1.0mm thick and bottom panel 0.8mm think have a weight of only 6 kilos per square meter. The interconnected honeycomb cores are like numerous 1 bars with interface layers distributed within the whole panel, thus resisting shearing and bending and large pressure. It's wind-resistance performance has greatly exceeded that of aluminum-plastic panels and aluminum single aluminum panels, so that even large-sized honeycomb panels can reach extremely high straightness. Aluminum honeycomb panels can reach the highest intensity and bending resistance with the lightest weight, which is an incomparable material, thus making it currently the preferred light weight material in the building industry.

Outstanding functions of sound insulation, heat insulation, fire prevention and shock prevention

                 Excellent performance in sound insulation, heat insulation, fireproofing and quakeproof.

Because the honeycomb core in the honeycomb composite panel is divided into many closed cells, the air flow is prevented, and the heat and sound waves are greatly hindered. Therefore, it has the effect of heat insulation, heat preservation and sound insulation. The sound source of 100 -3200HZ can reach 20 ~ 30dB, and the thermal conductivity is 0.104-0.130 W/M.K. Therefore, the energy absorption capacity of aluminum honeycomb panel is 150-3500KJ/M2, which is an ideal energy-saving material. In case of heavy rain, the noise is particularly large when raindrops hit the aluminum veneer or aluminum-plastic panel surface, and the honeycomb panel avoids this situation.

Since the honeycomb cores in aluminum composite panels are divided into many enclosed cells, which stops air flows and blocks heat and sound waves with 20-30 DB noise reduction for sources from 100HZ to 3200HZ and a heat conduction coefficient of 0.1040.130W/M.K. Aluminum honeycomb panel is an ideal energy saving material with an energy absorption capability of 150-3500KJ/M. For example, when it is raining, rain dropping on the aluminum single aluminum single panels or aluminum-formed panels will make a loud noise, but if replaced them with honeycomb panels, no such problems will occur.

Straight appearance, various colors, elegant and smooth, durable

                 Flat and straight in vision and diverse in color, elegant and bright.

Honeycomb panels of different specifications and sizes have extremely high flatness and are not easy to deform. The aluminum honeycomb panels produced by our company generally use fluorocarbon roll-coated aluminum panels to make panels. The most important point of fluorocarbon roll-coated aluminum plate is the use of a continuous roller coating process, the aluminum plate is painted at one time to ensure that the product has no color difference, good coating flatness and reliable quality. At the same time, it can keep the color of the outer wall of the building bright for a long time. After long-term sun and rain or industrial waste gas pollution, it is obvious that the roller coated board is cleaner and brighter than the spraying board, and has good adhesion and weather resistance. It is the first-class material recognized by the world\'s builders.

Aluminum honeycomb panels of different specifications and sizes all have extremely high straightness and have the advantage of not ease to distortion. The panels mainly adopt fluorocarbon coil coating. A critical point for fluorocarbon coil coating aluminum panels is that it employs the technique of continuous coil coating. The coating of aluminum panels is completed at the first time. Therefore, the Products with positive quality are free from chromatic aberration, excellently flat in coating, and keep the external wall of buildings brightly-colored over a long period of time. After a long time be exposed to the sun and rain or polluted by the industrial waste gas, obviously you can find the roller coating aluminum panels are brighter than the spraying coating aluminum panels, which has good adhesive force and climate-resistance. So the roller coating aluminum panels are recognized as the first-class construction materials by the world architects.

Strong decoration, easy and fast installation

                 Find decoration effect, easy and rapid installation.

The double-sided panels of the honeycomb panel can be made of different materials according to different requirements, such as aluminum plate, stainless steel plate, color steel plate, and natural stone. The curtain wall aluminum honeycomb panel is processed in the factory according to the size designed on site, bent around, then composite formed, and then punched and hung ears, which are connected with the plate into a whole, so that the formed honeycomb hanging panel is more firm. Honeycomb board can be made into flat plate, arc plate and L type plate, full factory production, reliable quality, convenient installation, fast.

The bottom panels of honeycomb panels can adopt different materials according to different requirements, such as aluminum panels, corrosion resistant panels, colored steel panels and natural stones. The aluminum honeycomb panels are processed in factories according to sizes designed in site. The surroundings of the panels are bent and then formed by hybrid forming. The suspension loops are punched and made into a whole with the panel which makes shaped honeycomb panels firmer. The honeycomb panels can be made into flat panels, panels of arc type and L type and U type through the full factory run with positive quality and easy installation.
