Aluminum SquareProduct

China's earliest Production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

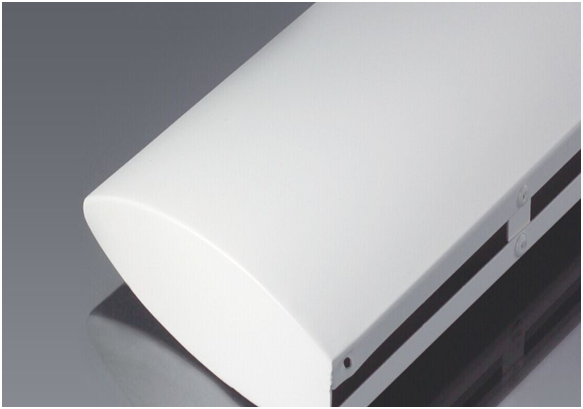

Large warhead hanging piece

Functional features:

线条柔和 通风防火
Creative design can make the architectural space deduce a different kind of wonderful, large bullet hanging piece is suitable for design into a variety of decorative effects and ceiling shape, its highly curved geometric ceiling appearance deduce fashionable architectural aesthetics. Large bullet hanging film smallpox loading and unloading flexible and simple, in the upper part of the ceiling placed sound insulation cotton can achieve good sound absorption effect, with ventilation, moisture-proof, anti-corrosion and fire prevention and other excellent characteristics.

Scope of application:

All kinds of large public building passageways, airports, exhibition halls, shopping centers, stations, tunnel corridors, etc.


Installation Schematic

50*150 large bullet hanging curtain ceiling (with 40 sub keels) installation instructions:

1.Measure the elevation after installation according to the design requirements;

2.Determine the construction direction, punch hoisting holes in the ceiling at a distance ≤ 1200mm, and fix the galvanized hanger rod with expansion bolts;

3.Fix 40 auxiliary keels, adjust the light steel keels to level, and adjust the elevation to keep consistent. The distance between 40 auxiliary keels is ≤ 1200mm;

4.Fix the upper slider, lower slider and M6 boom on the 40 sub-keel, and fix the large bullet head curtain on the 40 sub-keel, and adjust the spacing;

5.Note: the installation process should keep hands clean, no sweat, oil and other non-knot phenomenon.
