Aluminum strip buckle Product

China's earliest Production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

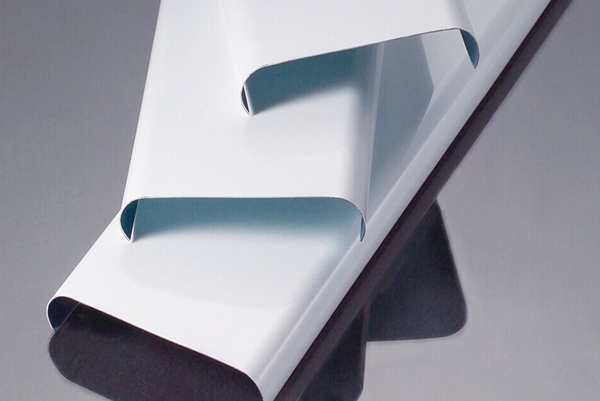

U-shaped buckle

Functional features:


U-shaped buckle can be equipped with a variety of colors, easy to install and disassemble, can be assembled into a layered space ceiling, is one of the ideal decorative materials.

Its maintenance restrictions are less, can be replaced and cleaned at any time, maintenance is very convenient, with moisture-proof fire prevention, no discoloration, no deformation, environmental protection, heat dissipation, ventilation and sound absorption and other excellent effects.


Scope of application:


All kinds of large public building passageways, airports, exhibition halls, shopping centers, stations, tunnel corridors, etc.

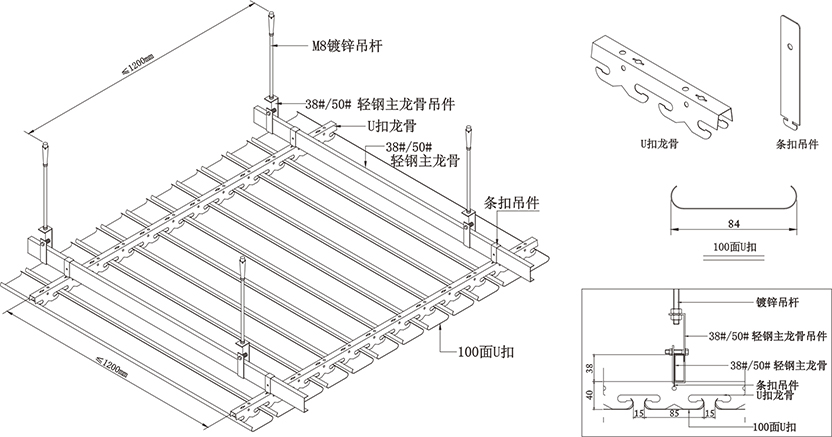

Installation Diagram 1


Installation instructions for U-buckle ceiling (with U-buckle keel) with 100 spacing on 85 sides:

1. Measure the elevation of the strip gusset ceiling after installation according to the requirements of the design drawings, determine the horizontal line of the ceiling, and fix the closing corner at the horizontal line around the wall;
2. Determine the construction direction, make lifting holes on the ceiling of the building structure according to the distance ≤ 1200mm, and fix the hanger rod with expansion bolts;
3. Fix the light steel keel hanger and light steel keel, adjust the light steel keel to level and adjust the elevation of the light steel keel. Each keel is parallel to each other;
4. Fix the U-buckle keel on the light steel keel with a bar buckle hanger and adjust the level. The U-buckle keel must be parallel to each other and perpendicular to the light steel keel;
5. Install the square buckle plate: buckle the U-buckle on the 100 surface into the auxiliary keel groove in the same direction;

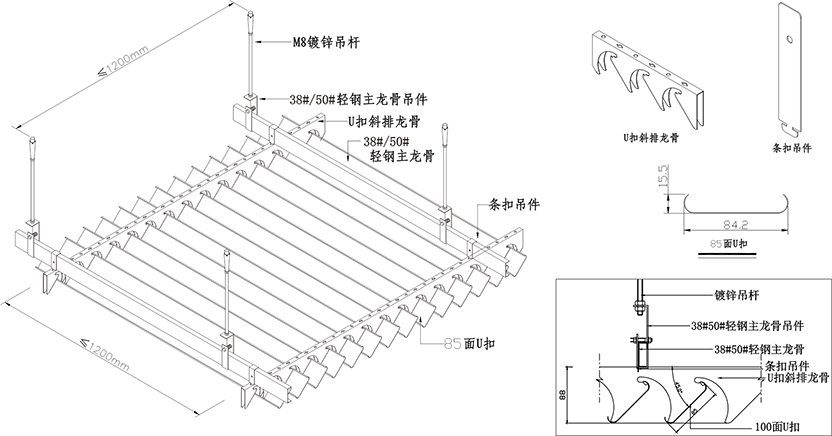

Installation Diagram 2

Installation instructions for 85-plane U-buckle inclined row ceiling (equipped with U-buckle inclined row keel):
1, according to the requirements of the design drawings, measure the elevation of the strip gusset ceiling after installation, determine the horizontal line of the ceiling, and fix the closing corner at the horizontal line around the wall;
2, determine the construction direction, according to the distance ≤ 1200mm in the building structure ceiling hoisting holes, with expansion bolts fixed hanger;
3. Fix the light steel keel hanger and light steel keel, adjust the light steel keel to level and adjust the elevation of the light steel keel. Each keel is parallel to each other;
4. Fix the U-buckle inclined keel on the light steel keel with a bar buckle hanger and adjust the level. The U-buckle inclined keel must be parallel to each other and perpendicular to the light steel keel;
5. Clip the U-shaped buckle plate into the auxiliary keel slot;
6. The size of the edge closing shall be measured according to the site conditions, and the ceiling shall be placed on the corner of the edge closing;



Enterprise Introduce

Enterprise Introduction

Guangzhou Kaimai Metal Building Materials Co., Ltd. is headquartered in Panyu District, Guangzhou City, Guangdong Province. It is one of the earliest enterprises in mainland China to produce and process aluminum veneer ceiling and aluminum veneer curtain wall. Its predecessor is a well-known professional OBM processing enterprise in Guangdong. The company covers an area of more than 30000 square meters and has a total investment of 30 million yuan. It mainly has curtain wall plate processing workshop, aluminum ceiling processing workshop, honeycomb plate composite workshop, special-shaped plate processing workshop and sound absorbing panel processing workshop, PPG spraying workshop, large warehouse and comprehensive office building, etc.

The company has advanced and automated Production equipment: large-scale CNC machining center, CNC multi-station punch, 6m CNC shearing machine, bending machine, engraving machine, 6m CNC bending machine and other professional Production equipment, as well as the United States PPG, AkzoNobel and DURACOAT approved and designed and manufactured by the United States company up to 580 meters of computer numerical control spraying line. The company has more than three hundred employees, 75% of whom have a college degree or above. The engineering and technical team is composed of experienced professionals, who have participated in the tracking design and installation of large-scale engineering projects at home and abroad. In addition, through technical cooperation with Deckel, Maho of Germany, KME Company of Florence and Gildmeiste R, and technical cooperation with Institute of Building Acousto and Optics of Chang'an University and Institute of Acoustics of Tongji University, R & D capabilit

At present, KLCC Aluminum's Products already have hundreds of Product specifications such as aluminum veneer ceiling, curtain wall, honeycomb panel, sound-absorbing panel, hanging curtain hanging sheet, aluminum square pass, aluminum magnesium manganese roof, etc. With strong research and development capabilities and dedication to excellent quality, the company further strengthens the market influence of KLCC Aluminum, and better provides customers with fast, high-quality Products and good services.

Heaven is healthy, the gentleman is constantly striving for self-improvement, the terrain is Kun, and the gentleman carries things with virtue. KLCC Aluminum is the essence of being a man with integrity, the attitude of doing things in a down-to-earth manner, the pursuit of high goals, strict and meticulous management, and sophisticated technical equipment. Serve customers as always, and work hard to make KLCC Aluminum a world famous brand!
