Aluminum strip buckle Product

China's earliest Production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

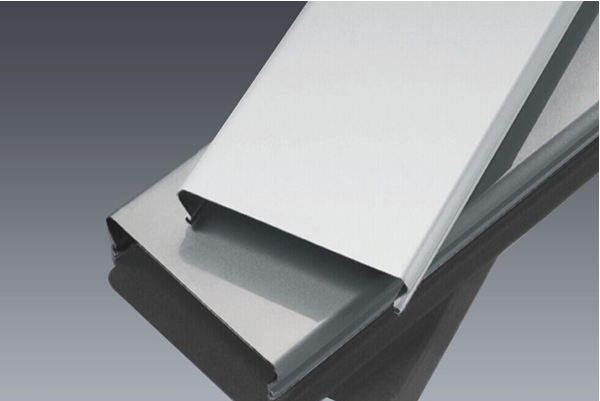

C- shaped bar buckle

Functional features:


Clear, smooth, beautiful and changeable

C- type buckle is also called low edge bevel buckle. Each plate can be disassembled and assembled independently and freely, and the keel has fixed digital mode clamping teeth,

Make the installation more quick and easy, can be replaced and cleaned at any time, maintenance is very convenient.


Scope of application:


Home (such as toilets, kitchens, public toilets), shopping malls, office buildings, exhibition halls, station corridors, airports and other construction sites.

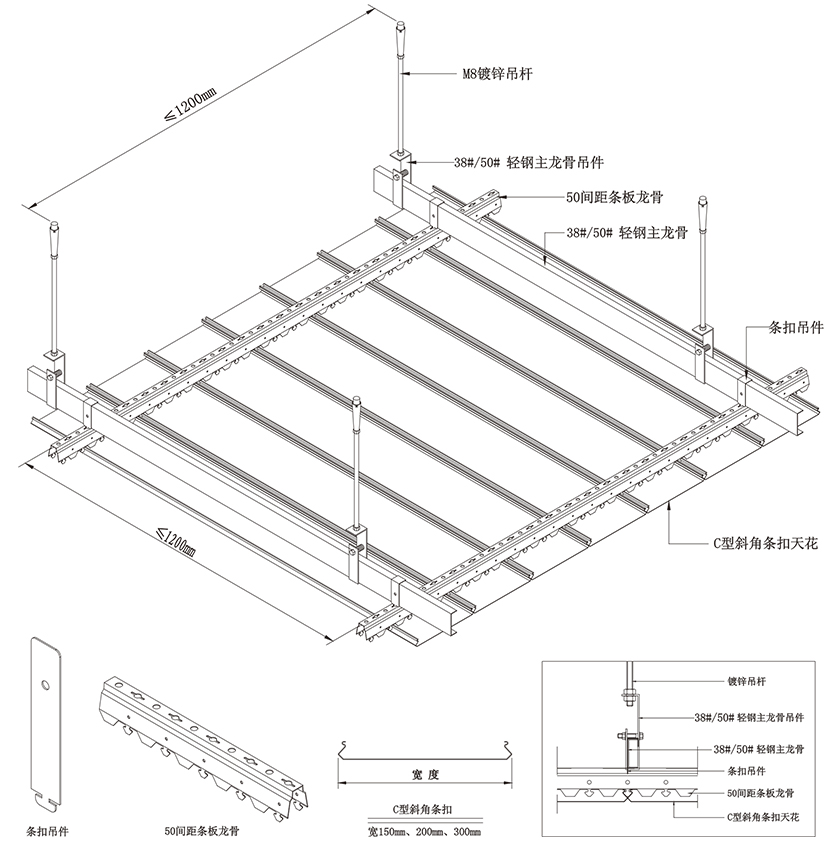

Installation Schematic

C- type bevel buckle ceiling (with 50 spacing strip keel) installation instructions:

1. Measure the elevation of the strip gusset ceiling after installation according to the requirements of the design drawings, determine the horizontal line of the ceiling, and fix the closing corner at the horizontal line around the wall;

2. Determine the construction direction, make lifting holes on the ceiling of the building structure according to the distance ≤ 1200mm, and fix the hanger rod with expansion bolts;

3. Fix the light steel keel hanger and light steel keel, adjust the light steel keel to level and adjust the elevation of the light steel keel. Each keel is parallel to each other;

4. Fix the 50-spacing strip keel on the light steel keel with a bar buckle and adjust the level,. 50 spacing slatted keels must be parallel to each other and perpendicular to the light steel keel;

5. Install the square gusset plate: fasten the C- shaped bevel buckle into the auxiliary keel clamp tooth in the same direction;

6. The size of the edge closing shall be measured according to the site conditions, and the ceiling shall be placed on the corner of the edge closing;

7. The installation process should keep hands clean, no sweat, oil and other undesirable phenomena.
