Aluminum SquareProduct

China's earliest Production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

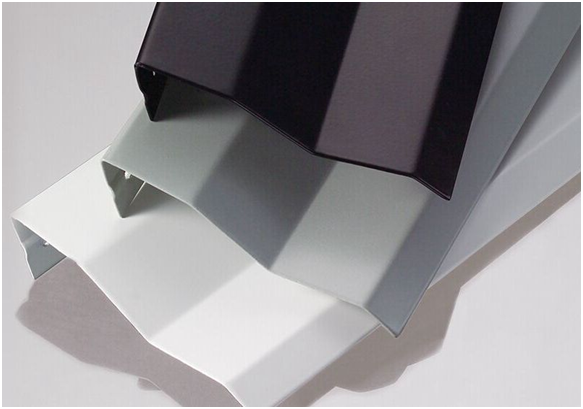

A- type hanging curtain

Functional features:


The A- type hanging curtain is a card-type hanging curtain, which can adjust the visual height of the space and hide the pipeline facilities, so that the sunlight or light entering the room can be soft and uniform,

It is easy to arrange the air outlet, air conditioning, lighting, spray and other facilities, which is conducive to the effective use of space, and can produce curtain effect with appropriate visual angle;

It has fewer restrictions on maintenance, making the design variable and the entire building space wide and transparent. The decorative effect is extraordinary.


Scope of application:


All kinds of large public building passageways, airports, exhibition halls, shopping centers, stations, tunnel corridors, etc.

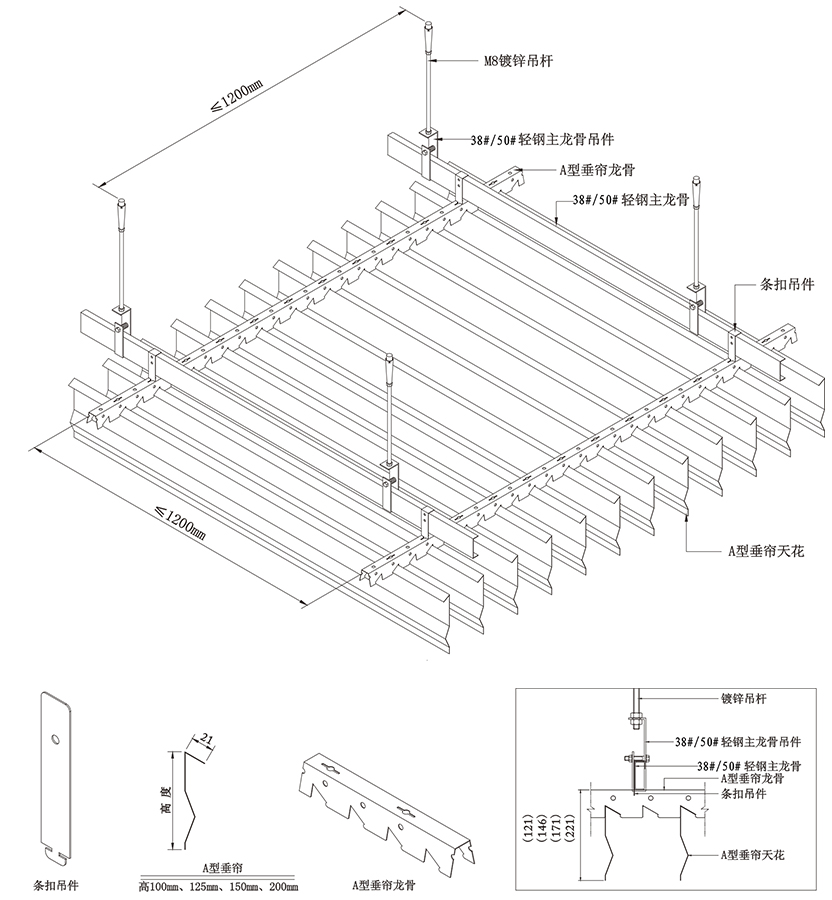

Installation Schematic

A- type hanging curtain ceiling (with A- type hanging curtain keel) installation instructions:

1. Measure the elevation after installation according to the design requirements;

2. Determine the construction direction, punch hoisting holes on the ceiling at a distance of ≤ 1200mm, and fix the galvanized hanger rod with expansion bolts;

3. Fix the light steel keel and hanging parts, adjust the light steel keel to the level, and adjust the elevation to keep the same. The distance between the light steel keel is ≤ 1200mm;

4. Fix the-type vertical curtain keel, fix the auxiliary keel and the light steel keel with a general hanging piece, the auxiliary keel is parallel to each other and perpendicular to the light steel keel, and the distance between the auxiliary keels is ≤ 1200mm;

5. The A- type curtain clip into the-type curtain keel, a slight adjustment can be;

6. Note: The installation process should keep the hands clean, no sweat, oil and other undesirable phenomena.
