China's earliest production and processing of aluminum veneer ceiling, one of the curtain wall manufacturers

What are the advantages of wood grain aluminum honeycomb panels

Article Source: Guangzhou Kaimai Metal Building Materials Co., Ltd. 人气:-Published: 2016-12-23 17:40:00

  wood grain aluminum honeycomb panelAviation technology is applied to civil construction, vehicle and ship decoration, etc. It is the application of aviation and aerospace materials in the field of civil construction.

  aluminum honeycomb panelIs based on aluminum metal plate, with ordinary aluminum veneer antibacterial, anti-corrosion, long service life characteristics, because of its special design it sound insulation, seismic, moisture-proof effect is also very prominent.

Wood grain aluminum honeycomb panel mainly uses high-quality 3003H24 alloy aluminum plate or 5052AH14 high manganese alloy aluminum plate as the base material. The thickness of the panel is 0.8~1.5mm fluorocarbon roll-coated board or light-resistant baking varnish. The light-resistant baking varnish is stronger than PVDF in scratch resistance, acid rain corrosion discoloration and self-cleaning. The thickness of the bottom plate is 0.6~1.0mm, and the total thickness is 25mm. The core material is hexagonal 3003 aluminum honeycomb core, the thickness of aluminum foil is 0.04~0.06mm, and the side length is 5~6mm. The forming of the front and back skins is completed by roll forming technology, the edge is folded by full-automatic machinery and equipment, and the front and back skins are tightly occluded at the installation edge.

wood grain aluminum honeycomb panel

In the 1960 s, foreign countries have been used in various fields of civil use, and have developed rapidly. In recent years, cellular technology has been applied in various fields of civil industry. Aluminum honeycomb panel curtain wall with its light weight, high strength, stiffness and many other advantages, has been widely used in high-rise building exterior decoration. The aluminum honeycomb panel with a total thickness of 15mm and a panel floor of 1.0mm is only 6Khg/㎡.

  Stone Honeycomb PanelScope of application: all kinds of large public building channels, airports, exhibition halls, shopping centers, stations, Tunnel corridors, etc.

The weight of honeycomb panel with the same rigidity is only 1/5 of that of aluminum veneer and 1/10 of that of steel plate. The interconnected aluminum honeycomb cores are like countless I-beams. The core layers are distributed and fixed in the whole plate surface to make the plate more stable. The wind pressure resistance of wood grain aluminum honeycomb panel is much higher than that of aluminum veneer and aluminum veneer, and has the characteristics of not easy deformation and good flatness, even if the partition size of honeycomb panel is large. It can also achieve extremely high flatness and is currently the preferred lightweight material for the construction industry.

Advantages of wood grain aluminum honeycomb panel

1. Fire prevention: aluminum plate is non-combustible material.

2. Corrosion resistance: aluminum honeycomb panel is treated with epoxy fluorocarbon on the surface, which has strong corrosion resistance. Salt spray for 48 hours without pinhole, crack, no bubble.

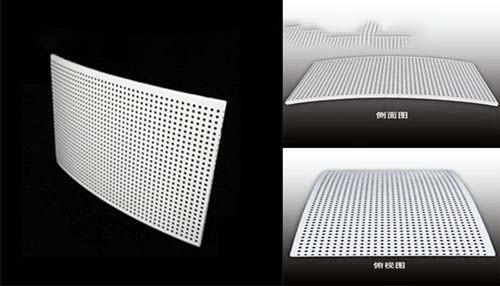

  arc honeycomb panelFeatures: sound insulation, heat insulation, fire prevention, shockproof function outstanding.

wood grain aluminum honeycomb panel

3, green, environmental protection, energy-saving curtain wall materials: honeycomb panels are pure aluminum Products, do not volatilize any harmful gases to the human body, non-radioactive and can be completely recycled, 100% environmentally friendly Products.

The aluminum honeycomb core is made of multiple layers of aluminum foil bonded together and then expanded into a regular honeycomb shape. And suitable for high quality honeycomb core face material paste and other purposes.

  Mirror honeycomb panelThe appearance is straight, the color is diverse, the color is uniform and stable.

Aluminum honeycomb panel has excellent properties such as light weight, sound insulation, fire prevention, non-fragile, strong rigidity, and environmental protection. Widely used in building curtain wall, and indoor and outdoor decoration, luxury car ship interior, high-speed train, etc

Recommended:Application range of punching honeycomb aluminum plate


Keyword of this article:wood grain aluminum honeycomb panel
