Structure of Aluminum Alloy Corrugated Board

　　aluminum alloy corrugated boardThe structure is generally three layers, with 0.4-0.8 thick aluminum layers on both sides of the outside. The corrugated core material in the middle is 0.2-0.4 and bonded with thermosetting epoxy resin adhesive. The product quality is greatly affected by the stability of glue and the temperature in the workshop during the production process. Poor control of the production process will cause the top plate and bottom plate to have weak adhesion with the corrugated core material, resulting in deformation and falling off, affect its overall production, installation quality.

　　aluminum corrugated boardIs the use of aluminum after rolling cold bending into a variety of waveform plate, it is suitable for industrial and civil buildings, warehouses and interior and exterior wall decoration, with light weight, high strength, fire prevention, long life and other characteristics, has been widely applied.

Aluminum alloy corrugated board is a new type of composite aluminum plate curtain wall material. It is formed by bonding 0.6-0.8mm panel, 0.4mm bottom plate, and 0.2mm corrugated core board in the middle. The surface of corrugated core board is coated with thermosetting epoxy resin adhesive, and the aluminum plate product is compounded by heating and pressing. Its compounding method is similar to that of corrugated cardboard box board.

Aluminum corrugated board, also known as corrugated aluminum plate, profiled aluminum plate, aluminum tile, etc., is a profiled board that uses aluminum plates to be rolled and bent into various waveforms. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls, and interior and exterior wall decorations of large-span steel structure houses. It has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fireproof, rainproof, rainproof, rainproof, long life, long life, maintenance-free, etc, has been widely used.

　　Stone Honeycomb PanelScope of application: all kinds of large public building channels, airports, exhibition halls, shopping centers, stations, tunnel corridors, etc.

Processing of Aluminum Alloy Corrugated Board

Aluminum corrugated board can be cut, drilled, trimmed and bent by general machines and tools.

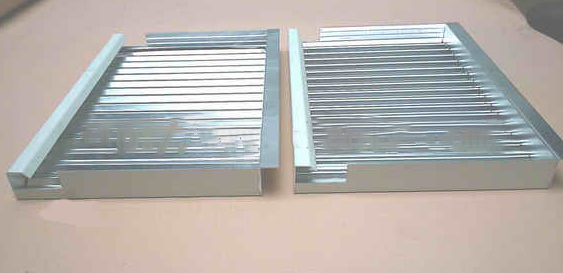

The production of aluminum alloy corrugated board is related to its supporting and fixing method. Usually along the perimeter from the edge of a certain width of the groove, cut corners, and then folded into a groove-shaped plate, surrounded by aluminum angle code and frame connection fixed. The groove of the groove is usually semicircular, 90 ° U type 135 ° U type and several other types. The U-shaped groove can obtain the minimum bending radius. When bending, the plate will be elongated, so the original plate processing length is shorter than the calculated length of the finished product. This elongated length change is related to the transverse or parallel direction of the rolling direction of the aluminum, and due consideration should be given to bending.

　　arc honeycomb panelFeatures: sound insulation, heat insulation, fire prevention, shockproof function outstanding.

Conditions for testing. For curved plates, aluminum corrugated plates have good processing performance and can be bent directly in the pressure brake, or the bottom plate can be torn off and bent freely using the characteristics of corrugated core plates.
