Scope of application of curved aluminum honeycomb panel

　　Arc aluminum honeycomb panelThe honeycomb sandwich panel with the same stiffness weighs only 1/5 of the aluminum plate and 1/10 of the steel plate. The total thickness is 15mm, the panel is 1.0mm, and the bottom plate is 0.8mm aluminum honeycomb panel, which weighs only 6kg/m2.

Interconnected honeycomb cores are like countless I-beams. The core layer is distributed and fixed in the whole plate surface, which is not easy to produce shear, making the plate more stable, more resistant to bending and compression. Its wind pressure resistance greatly exceeds that of aluminum-plastic plate and aluminum veneer, and has the characteristics of not easy to deform and good flatness.

　　aluminum corrugated boardIs the use of aluminum after rolling cold bending into a variety of waveform plate, it is suitable for industrial and civil buildings, warehouses and interior and exterior wall decoration, with light weight, high strength, fire prevention, long life and other characteristics, has been widely applied.

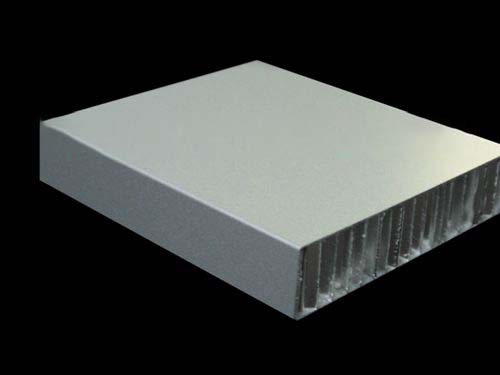

Aluminum honeycomb panel is a series of metal composite panel Products developed in combination with composite honeycomb panel technology. The product adopts the honeycomb sandwich structure, that is, the high-strength alloy aluminum plate with excellent weather resistance and decorative coating on the surface is used as the surface, and the arc-shaped aluminum honeycomb plate bottom plate and aluminum honeycomb core are made of composite plates under high temperature and high pressure.

Even if the size of the honeycomb panel is very large, Jinba Tai can achieve extremely high flatness. Because the honeycomb core in the honeycomb composite panel is divided into many closed cells, the air flow is prevented, and the heat and sound waves are greatly hindered. Therefore, the arc-shaped aluminum honeycomb panel has the effects of heat insulation, heat preservation and sound insulation.

　　Stone Honeycomb PanelScope of application: all kinds of large public building channels, airports, exhibition halls, shopping centers, stations, Tunnel corridors, etc.

To 100 The sound source of -3200HZ can reach 20 ~ 30dB, and the thermal conductivity is 0.104-0.130 W/M.K. Therefore, the energy absorption capacity of aluminum honeycomb panel is 150-3500KJ/M2, which is an ideal energy-saving material.

　　Arc aluminum honeycomb panelAdvantage Performance

(1) Fire prevention: aluminum plate is non-combustible material.

(2) Corrosion resistance: The surface of the aluminum honeycomb panel is treated with epoxy fluorocarbon, and the curved aluminum honeycomb panel has strong corrosion resistance. Salt spray for 48 hours without pinhole, crack, no bubble.

(3) Environmental protection: Honeycomb panels are pure aluminum Products, do not volatilize any harmful gases, non-radioactive and can be completely recycled, 100% environmentally friendly Products.

　　Mirror honeycomb panelThe appearance is straight, the color is diverse, the color is uniform and stable.

(4) the aluminum honeycomb panel is easy to dismantle and assemble, and will not dismantle the bad plate. Due to its light weight and convenient transportation, it can be transported to different places for repeated use. This is the other partition plate can not be compared.
