How about the performance of stone honeycomb aluminum plate

　　Stone honeycomb aluminum plateGeneral use of 3-5mm stone, 10-25mm aluminum honeycomb panel, after a special adhesive bonding compound.

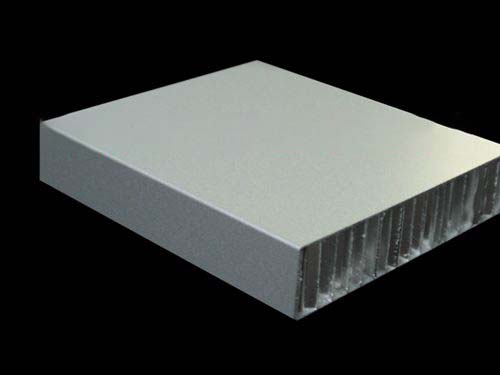

　　Beijing honeycomb aluminum plateIt is a composite material with large surface formed by hot pressing of high-grade aluminum alloy panel, back plate and aluminum honeycomb core material. The product specifications are various, and the surface can be embossed, mirror, embossed, wire drawing, electroplating, anodizing, matte, bright light and metallic color, etc., which can meet the application requirements of various places.

Application of Stone Honeycomb Aluminum Plate

Stone honeycomb aluminum plate has the characteristics of light weight, low radiation pollution, saving stone materials, large plate size, etc., can be used for ceiling, curtain wall, interior wall, ground, etc., more and more widely used in buildings, vehicles, ships and other decoration.

　　Stone honeycomb aluminum plateThe characteristics

1. Light weight:

The thinnest marble composite board can be only 5mm thick (composite with aluminum honeycomb board). The commonly used composite tile or granite is only about 12mm thick, which saves a lot of costs for transportation. It is the best choice when there is a load limit on the building.

2. Increased strength:

After marble is compounded with ceramic tiles, granite, aluminum honeycomb panels, etc., its flexural, flexural and shear strength is significantly improved, which greatly reduces the damage rate during transportation, installation and use.

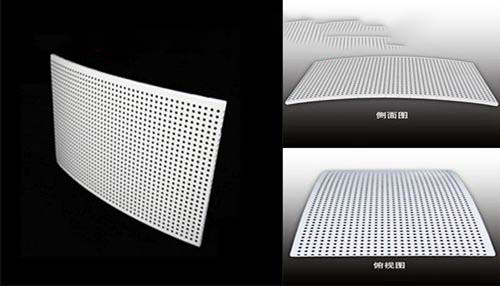

　　arc honeycomb panelFeatures: sound insulation, heat insulation, fire prevention, shockproof function outstanding.

Common Installation Methods of Stone Honeycomb Aluminum Curtain Wall

1. Lifting lug type: This installation method is to separate the lifting lug and the honeycomb plate. After the lifting lug is processed separately, it is connected to the glue seam position of the honeycomb plate. The suitable width of the glue seam is ≥ 12mm. This installation method makes the processing simple and the installation convenient.

2. flanging type: this installation method is to process the flanging for installation when processing the aluminum honeycomb panel. the installation only needs to comfort the connection with keel and glue seam. the suitable glue seam width is ≥ 10mm. this method is convenient to install, but the processing is slightly complicated and is not suitable for modeling curtain wall panels.

Stone honeycomb aluminum plate is generally 3-5mm stone, 10-25mm aluminum honeycomb plate, through a special adhesive bonding compound. For exterior curtain wall, it is recommended that the stone thickness of stone aluminum honeycomb panel is 4-5mm, and the thickness of aluminum honeycomb panel is not less than 25mm; for interior wall.

　　Mirror honeycomb panelThe appearance is straight, the color is diverse, the color is uniform and stable.

It is recommended that the stone thickness of the stone honeycomb aluminum plate is 3-4mm, and the thickness of the aluminum honeycomb plate is 15mm; for the interior ceiling, the recommended stone thickness of the stone aluminum honeycomb plate is 3-4mm, and the thickness of the aluminum honeycomb plate is 15-20mm.

For the floor panel, it is recommended that the stone thickness of the stone honeycomb aluminum plate is 5-8mm, and the thickness of the aluminum honeycomb plate is 10-15mm.
