Honeycomb aluminum plate glue injection process

1) willHoneycomb aluminum plateTear off the folding part of the protective film, stick masking paper at the folding part of the 90-degree corner, and fold the masking paper at the four-corner glue seam by 90-degree corner. The masking paper of the whole plate is in place at one time, and smooth it with force to avoid wrinkling of the masking paper.

(2) Honeycomb aluminum plates shall be filled with foam rods, which shall be compact and straight.

(3) When injecting glue, walk in a straight line, from top to bottom, from left to right, and finish at one time.

(4) When scraping glue, the glue injection step should be carried out once to the end, and the scraping speed at the corner should be slightly slower.

(5) honeycomb aluminum plate tear off the masking paper into an outward 45 degree tilt pull, should be torn off masking paper centralized processing, to avoid environmental pollution.

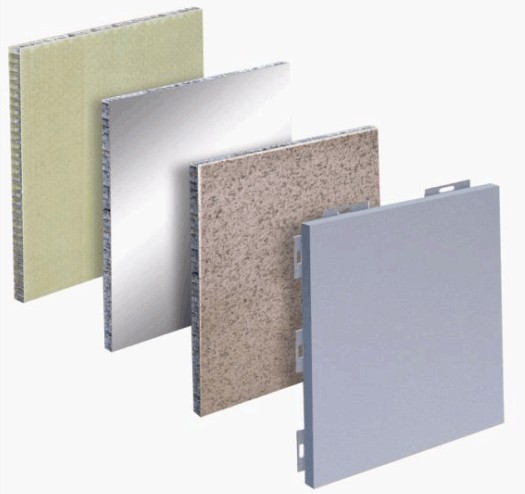

Honeycomb aluminum plate with high strength alloy aluminum plate as the surface, the bottom plate and aluminum honeycomb core by high temperature and high pressure composite manufacturing, is a kind of composite plate, it uses honeycomb sandwich structure, excellent material selection, advanced technology and reasonable structure, in color, flatness and other aspects have great advantages.

The installation of the honeycomb aluminum plate column shall first connect the column with the connecting piece, and then connect the connecting piece with the embedded part of the main body, and adjust and fix it. The installation elevation deviation of two adjacent columns shall not be greater than 3mm, the maximum elevation deviation of columns on the same floor shall not be greater than 5mm, and the distance deviation of two adjacent columns shall not be greater than 2mm. The elevation deviation of column installation shall not be greater than 3mm, the front and rear deviation of axis shall not be greater than 2mm, and the left and right deviation shall not be greater than 3mm.
