Specification and Characteristics of Corrugated Aluminum Sheet

　　Corrugated aluminum sheet specificationsRange:(0.5~5.0)*(2000~6000)

Corrugated aluminum alloy grades: 3003, 3004, 3105, etc

Corrugated aluminum plate model: 750 type, 840 type, 850 type, 900 type.

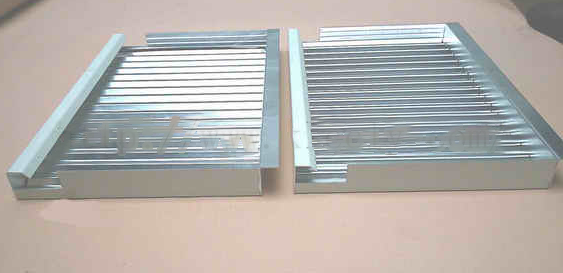

　　aluminum corrugated boardIt is a new type of composite aluminum plate curtain wall material, which is formed by bonding 0.6-0.8mm panel, 0.4mm bottom plate, and 0.2mm corrugated core plate in the middle. The surface of the corrugated core material is coated with thermosetting epoxy resin adhesive, and the aluminum plate product is compounded by heating and pressing. Its compounding method is similar to the form of corrugated cardboard box board.

Aluminum corrugated board curtain wall is mostly used for building exterior decoration and exterior wall enclosure type, that is, the aluminum corrugated board curtain wall installed on the existing wall of the building itself or outside it, in addition to its own decorative effect on the building, it also plays the role of outer enclosure. Such a curtain wall itself requires a better wind pressure resistance, water tightness, tightness and weather resistance sealing system.

The aluminum corrugated board curtain wall shall be checked with the construction drawing before fabrication and installation, and the building shall be retested. The original design shall be adjusted according to the measured results before processing and assembly. The equipment and tools used for processing shall meet the requirements of processing accuracy, and the measuring tools shall be subject to regular metrological verification.
