What is honeycomb aluminum plate

Honeycomb aluminum plate is a series of metal composite panel Products developed in combination with the aviation industry composite honeycomb panel technology.

The product uses a honeycomb sandwich structure, that is, a high-strength alloy aluminum plate with a decorative coating with excellent weather resistance is used as the surface, and the bottom plate and the aluminum honeycomb core are made of composite plates under high temperature and high pressure.

The product series has the advantages of good material selection, advanced technology and reasonable structure. It not only has excellent performance in large scale and flatness, but also has many choices in shape, surface treatment, color, installation system and so on.

In addition, the panel in addition to the use of aluminum alloy, but also according to customer needs to choose other materials, such as: copper, zinc, stainless steel, pure titanium, fire board, Zhong Qian board, marble, aluminum-plastic board and so on.

　　Honeycomb aluminum plateFeatures: The center is aluminum hexagonal honeycomb with low density (about 3~7kg per square meter), 1/5 of the weight of wood with the same thickness and area, 1/6 of glass and 1/7 of aluminum, greatly reducing the construction load and cost.

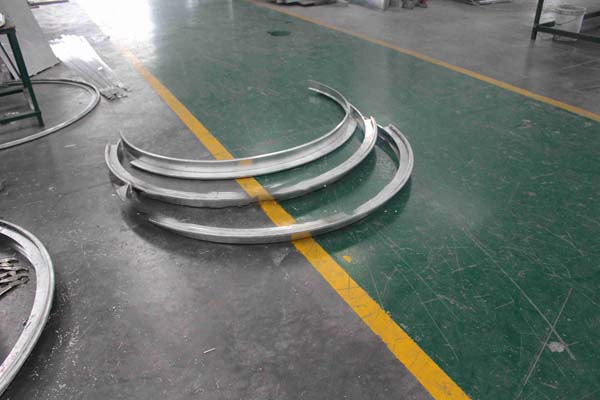

　　double curved plateBecause the middle interlayer contains a large amount of air, it can be soundproof (air sound insulation can reach 30dB), heat insulation (thermal resistance can reach 0.02(㎡?K/W)), no combustible substances, fire rating reached B1 level, waterproof, moisture-proof, no harmful gas release.

The specific strength of the unit mass is large, the specific rigidity is high (the structural rigidity is 1.7 times of the rib type), and it is not easy to deform. It completely overcomes the shortcomings of other decorative panels such as deformation and intermediate collapse when the area of a single piece is large. It is convenient to process and apply, and can be cut and folded at will.

　　Stone Honeycomb PanelThe surface fluorocarbon coating can guarantee the product life of more than 30 years. The surface of aluminum honeycomb panel has extremely high flatness and good seismic performance, which is only 1/8 of the specific gravity of glass curtain wall. The load of 22mm thick standard parts can reach more than 700kg force when it is simply supported at 1 meter and the deflection is 10mm.

After the surface is treated with fluorocarbon resin with strong corrosion resistance, it can be widely used in the decoration of curtain walls, roofs, large facade signs and interior walls of buildings.
