Stone aluminum honeycomb panel construction line

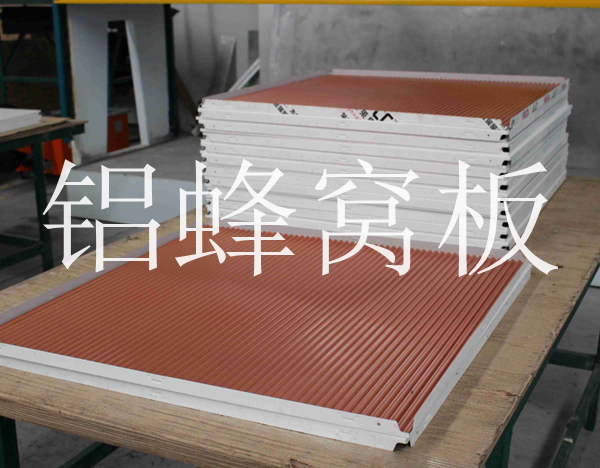

1,aluminum honeycomb panelThe verticality of the structural column is relatively positive, hang the vertical line on the keel installation axis, measure the upper and lower points with an angle ruler, record the data, and enlarge the average value by 10mm.

2. Mark the axis position on the floor with red and blue pencils, and draw it out with a 90-degree extension lead with an angle ruler. The aluminum honeycomb panel shall determine the relative position of the keel axis with the same correction error as above.

Stone Aluminum Honeycomb Panel Erection

1. Connect the corner code with anti-corrosion glue type, square gasket, aluminum honeycomb plate with spring washer, and counterbolt and keel screw and fix it by hand.

2. Fix the joint identification position at the upper opening of the keel, and temporarily fix the spot welding angle code.

3. The vertical error of aligning the keel with a 2-meter ruler is 2mm until it is adjusted in three dimensions.

4, review the diameter, according to the pay-off method for comparison.

5, full welding angle code and embedded parts contact position, require welding height 6-8mm, smooth lines, no bubbles and slag inclusion

6, to remove slag rust, two-time anti-rust paint coating.

Installation of stone aluminum honeycomb panel beam

1. The beam position axis shall be marked according to the construction drawing.

2. Weld and fix the corner code according to the identification line position.

3. Place the beam between the two corner codes and fine-tune it until the in-and-out position is flat with the upright surface.

4. Positive levelness and access position.

5. Full welding.

6. Anti-rust paint coating for slag removal and rust removal for two times

Stone aluminum honeycomb board hanging board

Mark the central axis of the stand and the beam with the principle of horizontal, flat and vertical, adjust the curved arc plate according to the design glue seam, wrap the whole unit column, and then make the whole straightening, ensure that the error of upper and lower division, vertical and flatness is 2mm, and fill all screws.

Glue and clean stone aluminum honeycomb panel

1. Tear off the folding part of the protective film on the aluminum honeycomb panel, and stick masking paper at the folding part of the 90-degree corner. The masking paper shall be folded into a 90-degree corner at the glue seam of the word . The masking paper of the whole plate shall be in place at one time and shall be swept flat with force to avoid wrinkling of the masking paper.

2, filling foam round beech, requiring dense and straight.

3. When filling glue, walk in a straight line, from top to bottom, from left to right, and finish at one time.

4, scraping glue according to the principle of glue injection should also be once to the end, at the word interface scraping speed is slightly slower.

5, tear off the masking paper, into an outward 45 degree tilt pull, the torn masking paper concentrated in the dustbin, to avoid environmental pollution.

6. After the weather-resistant adhesive dries, tear off the outer protective film when sweeping the tail, and wipe off the dust around with a dry cloth.
