Applicable scope of aluminum corrugated composite board

Article Source: Guangzhou Kaimai Metal Building Materials Co., Ltd. 人气:-Published: 2017-02-06 12:02:00

  aluminum corrugated composite boardThe AL3003H16-H18 material is used, the thickness of the panel is 0.8~1.0mm, the thickness of the back plate is 0.4~0.5mm (the same as the aluminum honeycomb panel), the core plate is AL100H16-H18, the thickness of the material is 0.2mm (the core plate of the honeycomb panel is 0.06~0.07mm), it is water ripple type, and the bonding surface with the panel back plate is arc type, which increases the bonding strength (higher than the honeycomb plate).

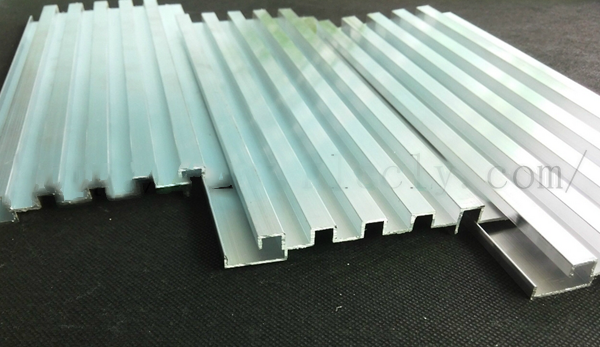

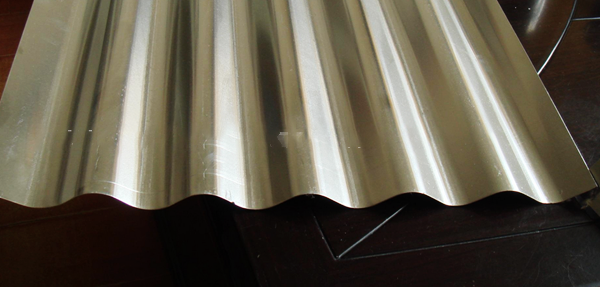

  aluminum corrugated boardIs the use of aluminum after rolling cold bending into a variety of waveform plate, it is suitable for industrial and civil buildings, warehouses and interior and exterior wall decoration, with light weight, high strength, fire prevention, long life and other characteristics, has been widely applied.

aluminum corrugated composite board

The use of thermosetting resin adhesive agent has excellent adhesion to the metal plate, in the advanced fully automated production equipment with the most advanced ERPSystem system quality management production, to ensure that the bonding performance is stable and durable with the construction of the same life.

The panel of corrugated board is coated with fluorocarbon roller. Due to the automatic production line of degreasing, degreasing, cleaning, drying and chroming treatment on the surface of aluminum plate, the coating thickness is uniform, the adhesion is good, the color is different, and the anti-stone effect is available.

  Stone Honeycomb PanelScope of application: all kinds of large public building channels, airports, exhibition halls, shopping centers, stations, Tunnel corridors, etc.

Aluminum corrugated composite board is a new type of composite aluminum curtain wall material. It is formed by bonding 0.6-0.8mm panel, 0.4mm bottom plate, and 0.2mm corrugated core board in the middle. The surface of corrugated core board is coated with thermosetting epoxy resin adhesive and heated and pressurized. The composite method is similar to that of corrugated box board.

aluminum corrugated composite board

The advantages of aluminum corrugated composite panels are energy-saving: aluminum corrugated panels are light in weight, and their weight of 4.3kg per square is only equivalent to 50% of aluminum veneer.

  Mirror honeycomb panelThe appearance is straight, the color is diverse, the color is uniform and stable.

Antibacterial and mildew-proof aluminum-plastic plate will have antibacterial and bactericidal coating on the aluminum-plastic plate, so that it has the effect of controlling microbial activity and ultimately killing bacteria.

Oxidation coloring aluminum-plastic plate is treated with anodic oxidation in time. The aluminum alloy panel has unique colors such as rose red and bronze, which plays a special decorative effect.

Recommended:Precautions for Installation of Aluminum Corrugated Board
