How to determine the material of imported aluminum honeycomb panel

    　进口aluminum honeycomb panelDecorative panels are generally made of 3003, 5005 and other brands, and 1100 plates with low alloy composition are rarely used. Decorative surface adopts spraying or roller coating form, coating is polyester or fluorocarbon paint, exterior wall board is best to choose spraying board, and requires more than three coating, paint layer thickness ≥ 40μm, so imported aluminum honeycomb board can ensure the durability of the coating.

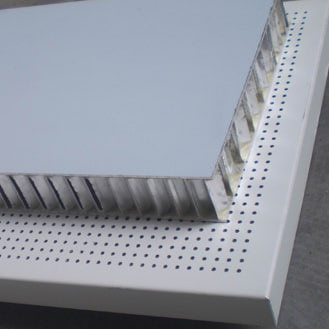

The imported aluminum honeycomb panel adopts composite honeycomb structure, which is formed by hot pressing and compounding of preformed box-shaped face plate and back plate and aluminum alloy honeycomb core material. High-quality 3003H24 alloy aluminum plate 5052AH14 high-manganese alloy aluminum plate is selected as the base material. The thickness of the panel is 0.5-1.5mm fluorocarbon roll-coated plate, and the thickness of the bottom plate is 0.5-1.0mm; The aluminum honeycomb core material is hexagonal 3003 core material with aluminum foil thickness of 0.04-0.06mm and side length of 5-6mm.

　　 进口aluminum honeycomb panelFeatures: (1) light weight, high strength, high rigidity, stable structure, good wind pressure resistance (2) sound insulation, heat insulation, fire prevention and shockproof functions can highlight (3) the surface has amazing flatness and color diversification (4) strong decoration, easy installation, fast and 3. application range of aluminum honeycomb panel: hotels, hotels, shopping malls, office buildings, hospitals, schools, stations, airports, stadiums, ships and other indoor and outdoor decorations, advertising signs and building curtain walls.

   　进口aluminum honeycomb panelThe inner layer is a special hexagonal aluminum honeycomb, composed of aluminum alloy with a hardness of H19, which acts as a core plate adhered in the sandwich structure and bears pressure in the tangential direction. These mutually restrained dense honeycombs are like many small I-beams, which can be dispersed to bear the pressure from the direction of the panel, so that the plate is evenly stressed and ensures that the panel can still maintain a high flatness in a large area.

　　进口aluminum honeycomb panel安装时采用两边安装，无机械破坏。进口aluminum honeycomb panelThe sliding installation buckle system allows thermal expansion and contraction, and the anti-slip buckle at the bottom of the board can control the expansion direction of the board. 25MM hidden glue joint system is beautiful and has self-cleaning function. After the completion of the production of the box-type honeycomb plate, the inner and outer plates and the honeycomb structure form a whole. In addition, the hollow honeycomb can also greatly reduce the thermal expansion of the plate body. Because the honeycomb material has high wind pressure resistance, shock absorption, sound insulation, heat preservation, flame retardant and high specific strength. In the 1960 s, foreign countries have been used in various fields of civil use, and have developed rapidly. In recent years, cellular technology has been applied in various fields of civil industry. Imported aluminum honeycomb panel with its light weight, high strength, stiffness and many other advantages, has been widely used in high-rise building exterior decoration.
